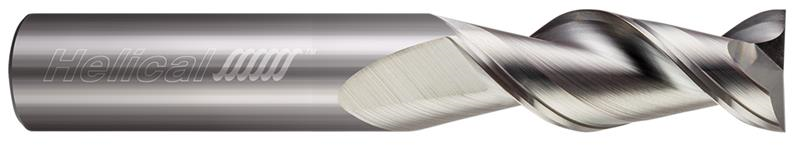

0.5000 in. (1/2) Cutter Diameter x 0.5000 in. (1/2) Shank Diameter x 2.0000 in. (2) Length of Cut x 4.0000 in. (4) Overall Length Carbide 2 Flute Uncoated 45 Deg. Helix Square End Mill
- Item Code: 00495
- Brand: Helical
- Unit Size: 1
Description
For Aluminum ; H45AL-L-20500
Features
Back To Top- Designed for outstanding performance and accelerated metal removal rates in aluminum and non-ferrous materials
- Designed with a high helix for improved part finish and shearing action
- High helix for increased part finish and shearing action
- Cylindrically ground to maintain edge strength
- Center cutting
- h6 shank tolerance for high precision tool holders
- Zplus coating offers higher hardness and added lubricity for maximum performance
- Solid carbide end mills
- CNC ground in the USA
Tech Specs
Back To Top| Tool Description | H45AL-L-20500 |
|---|---|
| Coating/Finish | None |
| LOC Multiple | (4x) |
| Shank Diameter | 0.5000" (1/2) |
| Web Thickness | 0.0070" |
| Brand | Helical |
| Center Cutting | Yes |
| Coolant Through | No |
| Fractional Diameter | 1/2" |
| Length of Cut | 2.0000" (2) |
| Number of Flutes | 2 |
| Shank Length | 2.0000" (2) |
| Decimal Diameter | 0.5000" |
| Chip Breaker | No |
| Material | Solid Carbide |
| Overall Length | 4.0000" (4) |
