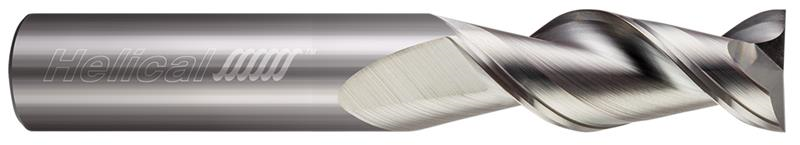

1.0000 in. (1) Cutter Diameter x 1.0000 in. (1) Shank Diameter x 4.1250 in. (4-1/8) Length of Cut x 7.0000 in. (7) Overall Length Carbide 2 Flute Uncoated 45 Deg. Helix Square End Mill
- Item Code: 00795
- Brand: Helical
- Unit Size: 1
Description
For Aluminum ; H45AL-X-21000
Features
Back To Top- Designed for outstanding performance and accelerated metal removal rates in aluminum and non-ferrous materials
- Designed with a high helix for improved part finish and shearing action
- High helix for increased part finish and shearing action
- Cylindrically ground to maintain edge strength
- Center cutting
- h6 shank tolerance for high precision tool holders
- Zplus coating offers higher hardness and added lubricity for maximum performance
- Solid carbide end mills
- CNC ground in the USA
Tech Specs
Back To Top| Shank Length | 2.8750" (2-7/8) |
|---|---|
| Coating/Finish | None |
| Decimal Diameter | 1.0000" |
| Material | Solid Carbide |
| Number of Flutes | 2 |
| Tool Description | H45AL-X-21000 |
| Shank Diameter | 1.0000" (1) |
| Chip Breaker | No |
| Fractional Diameter | 1" |
| Overall Length | 7.0000" (7) |
| Brand | Helical |
| Length of Cut | 4.1250" (4-1/8) |
| Center Cutting | Yes |
| Web Thickness | 0.0070" |
| Coolant Through | No |
| LOC Multiple | (4x) |
