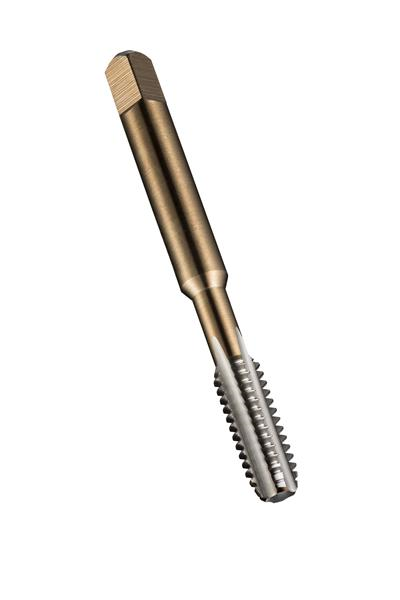

M4 x 0.70 mm Coarse HSS Steam Tempered RH 6HX Semi-Bottoming Straight Flute Machine Tap with White Shank
- Item Code: 0085196
- Brand: Dormer
- Unit Size: 1
Description
Straight flute tap White Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6HX class of fit, dimensions according to DIN 371 standard with 4.5mm shank and 3.4mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers
Features
Back To Top- Designed for through or blind hole tapping with a specific geometry for cast iron and those materials producing broken, powdery chips.
- Also ideal for non-metallics, cast brass, and other brass materials.
- Nitride and steam oxide coating reduces wear and chip welding in abrasive materials.
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Number of Flutes | 4 |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
| Overall Length Inches | 2.4803 |
| Cutting Direction | Right |
| Coating/Finish | Steam Tempered |
| Overall Length Metric | 63 mm |
