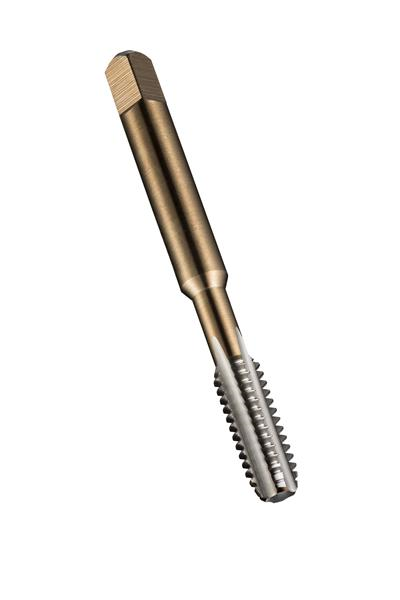

M12 x 1.75 mm Metric Coarse 6H HSS Bright Finish Straight 3 Flute Bottoming Chamfer Machine Tap
- Item Code: 0094044
- Brand: Dormer
- Unit Size: 1
Description
Straight flute hand tap NO3 with a 2-3xP semi-bottoming lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 9.0mm shank and 7.1mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel
Features
Back To Top- Bottom chamfers are used for threading blind holes. They have 1 to 2 threads.
- High Speed Steel provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
- Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Tech Specs
Back To Top| Cutting Direction | Right |
|---|---|
| Number of Flutes | 3 |
| Material | HSS |
| Coating/Finish | Bright |
| Overall Length Inches | 3.5039 |
| Shank Style | Cylindrical shank with Square |
| Brand | Dormer |
| Overall Length Metric | 89 mm |
