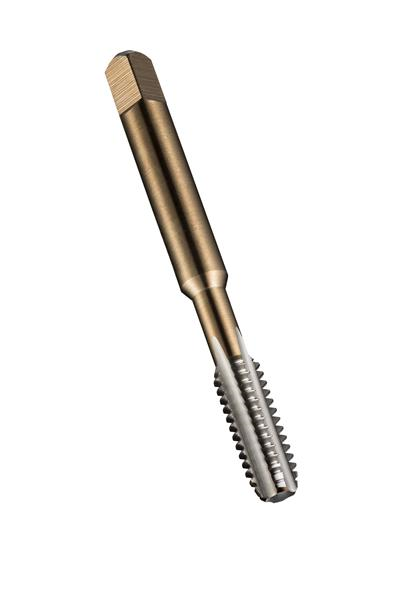

M2 x 0.4 mm Metric Coarse 6H HSS Bright Finish Straight 3 Flute Bottoming Chamfer Machine Tap
- Item Code: 0094273
- Brand: Dormer
- Unit Size: 1
Description
Straight flute hand tap NO3 with a 2-3xP semi-bottoming lead, for ISO-Metric thread M2 with 0.40 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 2.5mm shank and 2.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel
Tech Specs
Back To Top| Cutting Direction | Right |
|---|---|
| Number of Flutes | 3 |
| Shank Style | Cylindrical shank with Square |
| Coating/Finish | Bright |
| Overall Length Metric | 41 mm |
| Material | HSS |
| Overall Length Inches | 1.6142 |
| Brand | Dormer |
