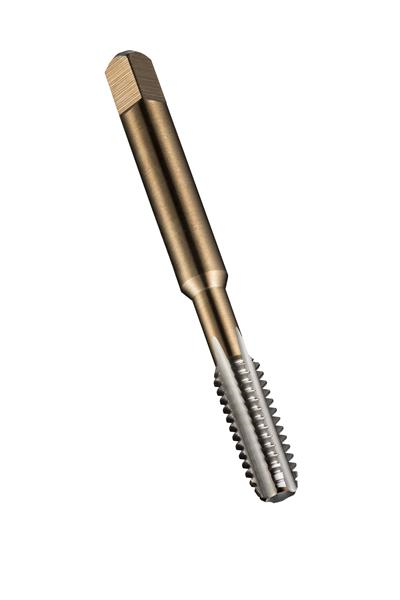

M6 x 0.75 Metric Fine HSS Bright Finish 6H 3 Flute Bottoming Hand Tap
- Item Code: 0096765
- Brand: Dormer
- Unit Size: 1
Description
Straight flute hand tap NO3 with a 2-3xP semi-bottoming lead, for ISO-Metric Fine thread M6 with 0.75 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 6.3mm shank and 5.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys
Tech Specs
Back To Top| Cutting Direction | Right |
|---|---|
| Number of Flutes | 3 |
| Overall Length Metric | 66 mm |
| Shank Style | Cylindrical shank with Square |
| Overall Length Inches | 2.5984 |
| Coating/Finish | Bright |
| Brand | Dormer |
| Material | HSS |
