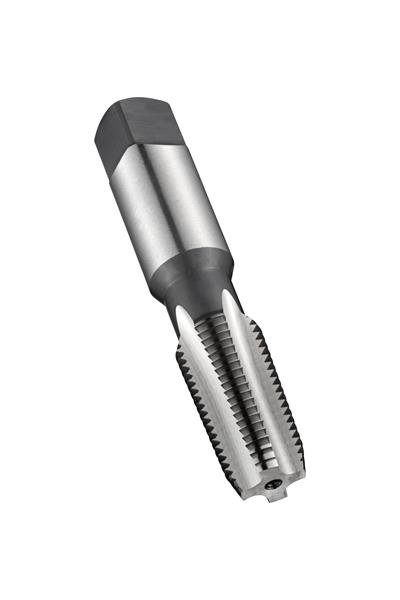

1/4-18 in. NPT HSS Bright Finish RH 4 Flute Medium Hook Semi-Bottoming Straight Flute Pipe Tap
- Item Code: 0099872
- Brand: Dormer
- Unit Size: 1
Description
Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for National Pipe Taper thread NPT 1/4" with 18 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 14.3mm shank and 10.7mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys
Features
Back To Top- High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials
- Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic
Tech Specs
Back To Top| Coating/Finish | Bright |
|---|---|
| Overall Length Metric | 75 mm |
| Number of Flutes | 4 |
| Shank Style | Cylindrical shank with Square |
| Brand | Dormer |
| Cutting Direction | Right |
| Material | HSS |
| Overall Length Inches | 2.9528 |
