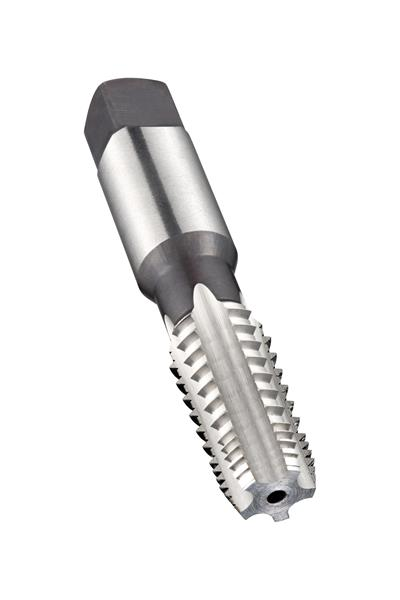

3/8-18 in. NPT HSS Bright Finish RH 5 Flute Semi-Bottoming Straight Flute Interrupted Thread Pipe Tap
- Item Code: 0099971
- Brand: Dormer
- Unit Size: 1
Description
Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for National Pipe Taper thread NPT 3/8" with 18 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 17.8mm shank and 13.5mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in alloy steel
Features
Back To Top- High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials
- Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic
- Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
Tech Specs
Back To Top| Cutting Direction | Right |
|---|---|
| Overall Length Inches | 3.1496 |
| Shank Style | Cylindrical shank with Square |
| Material | HSS |
| Number of Flutes | 5 |
| Overall Length Metric | 80 mm |
| Brand | Dormer |
| Coating/Finish | Bright |
