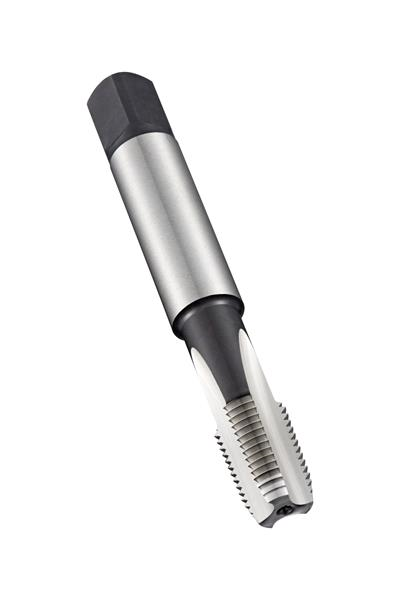

3/4-14 in. NPTF HSS Bright Finish 5 Flute Medium Hook Dryseal Standard Pipe Tap
- Item Code: 0100042
- Brand: Dormer
- Unit Size: 1
Description
Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for (Dryseal) National Pipe Taper thread for Fuel lines NPTF 3/4" with 14 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 23.0mm shank and 17.2mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys
Features
Back To Top- High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials
- Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Material | HSS |
| Cutting Direction | Right |
| Overall Length Inches | 4.1339 |
| Number of Flutes | 5 |
| Shank Style | Cylindrical shank with Square |
| Coating/Finish | Bright |
| Overall Length Metric | 105 mm |
