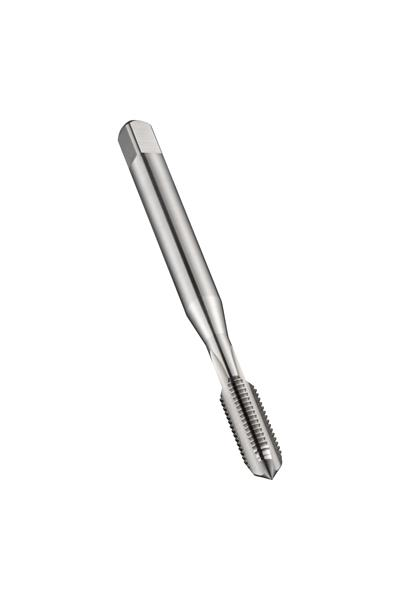

M3 x 0.50 Metric Coarse 6H Plug Chamfer Series E606 Extension Tap
- Item Code: 0123942
- Brand: Dormer
- Unit Size: 1
Description
Long shank spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to ISO 2283 standard with 3.15mm shank and 2.5mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel
Features
Back To Top- Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
- Spiral point taps are used for tapping through holes. They have a flute geometry that shoots chips ahead of the cutting action to reduce loading and logging within the flute.
- Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
| Coating/Finish | Bright |
| Overall Length Metric | 66 mm |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Overall Length Inches | 2.5984 |
