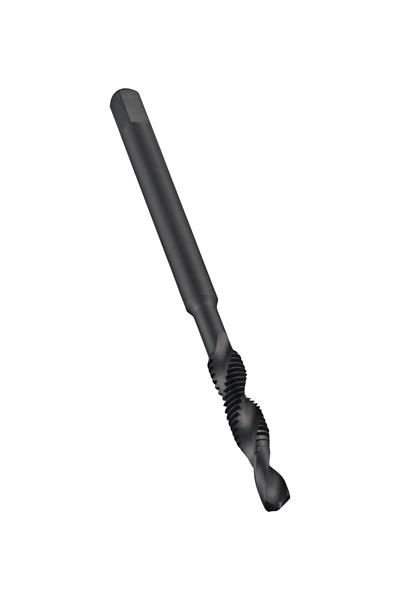

M12 x 1.75 Metric Coarse HSS Oxide Finish 6H Combination Drill and Tap
- Item Code: 0127520
- Brand: Dormer
- Unit Size: 1
Description
Combination drill-tap with a 30? spiral flute, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 9.0mm shank and 7.1mm square drive, HSS with steam tempered surface finish and 30? helix angle for 1.5xD through hole threading in free machining steel
Tech Specs
Back To Top| Overall Length Inches | 4.4488 |
|---|---|
| Overall Length Metric | 113 mm |
| Brand | Dormer |
| Material | HSS |
| Number of Flutes | 2 |
| Coating/Finish | Steam Tempered |
| Cutting Direction | Right |
| Shank Style | Cylindrical shank with Square |
| Helix Angle | 30 Deg. |
