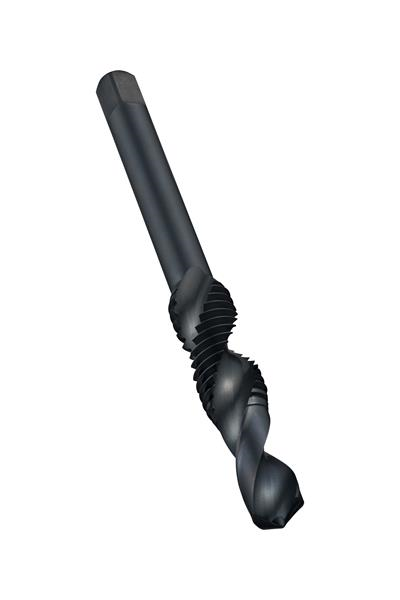

M4 x .070 Metric Coarse HSS Oxide Finish 6H Series E650 Combination Drill and Tap
- Item Code: 0127551
- Brand: Dormer
- Unit Size: 1
Description
Combination drill-tap with a 30? spiral flute, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 4.0mm shank and 3.15mm square drive, HSS with steam tempered surface finish and 30? helix angle for 1.5xD through hole threading in free machining steel
Features
Back To Top- High Speed Steel provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
- Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
Tech Specs
Back To Top| Number of Flutes | 2 |
|---|---|
| Overall Length Metric | 65 mm |
| Helix Angle | 30 Deg. |
| Overall Length Inches | 2.5591 |
| Coating/Finish | Steam Tempered |
| Cutting Direction | Right |
| Material | HSS |
| Shank Style | Cylindrical shank with Square |
| Brand | Dormer |
