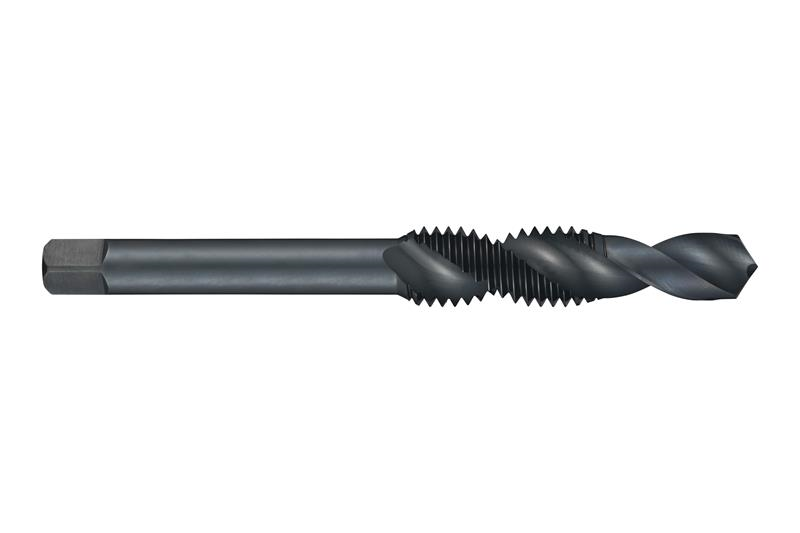

M5 x 0.80 Metric Coarse HSS Oxide Finish 6H Combination Drill and Tap
- Item Code: 0127568
- Brand: Dormer
- Unit Size: 1
Description
Combination drill-tap with a 30? spiral flute, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 5.0mm shank and 4.0mm square drive, HSS with steam tempered surface finish and 30? helix angle for 1.5xD through hole threading in free machining steel
Tech Specs
Back To Top| Cutting Direction | Right |
|---|---|
| Overall Length Inches | 2.7165 |
| Material | HSS |
| Number of Flutes | 2 |
| Coating/Finish | Steam Tempered |
| Shank Style | Cylindrical shank with Square |
| Brand | Dormer |
| Helix Angle | 30 Deg. |
| Overall Length Metric | 69 mm |
