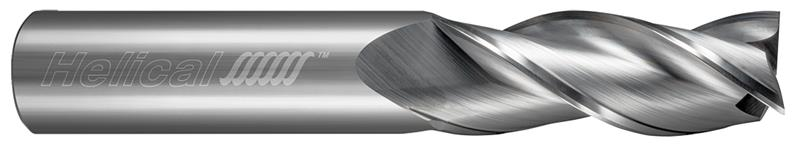

0.3750 in. (3/8) Cutter Diameter x 0.3750 in. (3/8) Shank Diameter x 0.5000 in. (1/2) Length of Cut x 2.0000 in. (2) Overall Length Carbide 3 Flute Uncoated 35 Deg. Helix Square Endmill

  • Item Code: 01330
  • Brand: Helical
  • Unit Size: 1

Description

For Aluminum ; H35AL-S-30375

Features Tech Specs

Features

Back To Top
    • Designed for outstanding performance and accelerated metal removal rates in aluminum and non-ferrous materials
    • Designed for tough roughing applications with 3 flutes and 35� helix
    • Cylindrically ground to maintain edge strength
    • Excellent performance in High Efficiency Milling (HEM)
    • Center cutting
    • h6 shank tolerance for high precision tool holders
    • Zplus coating offers higher hardness and added lubricity for maximum performance
    • Solid carbide end mills
    • CNC ground in the USA

Tech Specs

Back To Top
Center Cutting Yes
Chip Breaker No
Coolant Through No
Tool Description H35AL-S-30375
Decimal Diameter 0.3750"
LOC Multiple (1x)
Brand Helical
Fractional Diameter 3/8"
Length of Cut 0.5000" (1/2)
Material Solid Carbide
Coating/Finish None
Shank Length 1.5000" (1-1/2)
Number of Flutes 3
Shank Diameter 0.3750" (3/8)
Overall Length 2.0000" (2)
