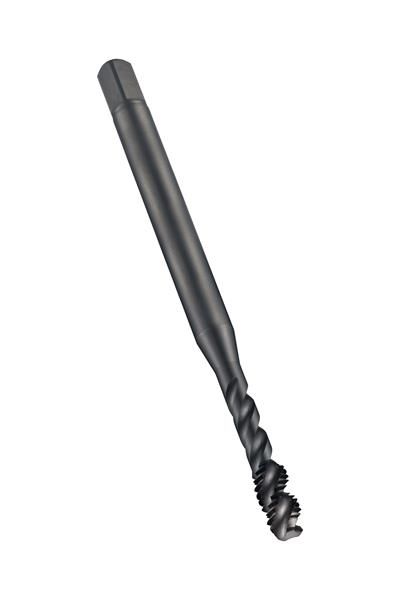

M36 mm x 4.00 mm Metric mm Coarse Omm xide Finish Cobalt 6H 4 Flute Bottoming Spiral Point Tap
- Item Code: 0137161
- Brand: Dormer
- Unit Size: 1
Description
Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M36 with 4.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 28.0mm shank and 22.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45? helix angle for 2.5xD blind hole threading in general purpose applications
Tech Specs
Back To Top| Overall Length Metric | 200 mm |
|---|---|
| Material | HSS Cobalt Powdered Metal |
| Brand | Dormer |
| Overall Length Inches | 7.874 |
| Coating/Finish | Steam Tempered |
| Cutting Direction | Right |
| Shank Style | Cylindrical shank with Square |
| Number of Flutes | 4 |
| Helix Angle | 45 Deg. |
