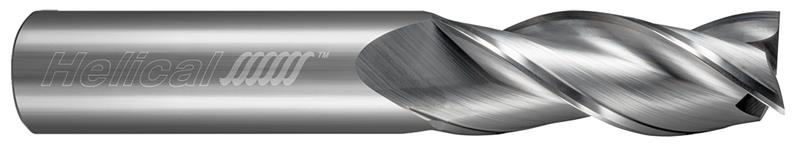

0.6250 in. (5/8) Cutter Diameter x 0.6250 in. (5/8) Shank Diameter x 2.1250 in. (2-1/8) Length of Cut x 4.0000 in. (4) Overall Length Carbide 3 Flute Uncoated 35 Deg. Helix Square Endmill
- Item Code: 01585-HELICAL
- Brand: Helical
- Unit Size: 1
Description
For Aluminum ; H35AL-M-30625
Features
Back To Top- Designed for outstanding performance and accelerated metal removal rates in aluminum and non-ferrous materials
- Designed for tough roughing applications with 3 flutes and 35� helix
- Cylindrically ground to maintain edge strength
- Excellent performance in High Efficiency Milling (HEM)
- Center cutting
- h6 shank tolerance for high precision tool holders
- Zplus coating offers higher hardness and added lubricity for maximum performance
- Solid carbide end mills
- CNC ground in the USA
Tech Specs
Back To Top| Tool Description | H35AL-M-30625 |
|---|---|
| Fractional Diameter | 5/8" |
| Length of Cut | 2.1250" (2-1/8) |
| Shank Diameter | 0.6250" (5/8) |
| Shank Length | 1.8750" (1-7/8) |
| Coating/Finish | None |
| Decimal Diameter | 0.6250" |
| Material | Solid Carbide |
| Number of Flutes | 3 |
| Coolant Through | No |
| Brand | Helical |
| Center Cutting | Yes |
| LOC Multiple | (3x) |
| Chip Breaker | No |
| Overall Length | 4.0000" (4) |
