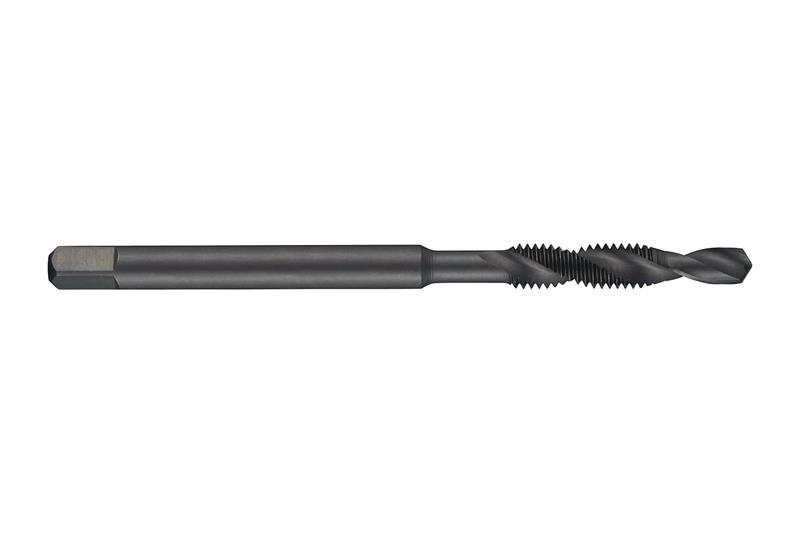

M3 x 0.50 Metric Coarse HSS Oxide Finish 6H Combination Drill and Tap
- Item Code: 0167861
- Brand: Dormer
- Unit Size: 1
Description
Combination drill-tap with a 30? spiral flute, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 3.15mm shank and 2.5mm square drive, HSS with steam tempered surface finish and 30? helix angle for 1.5xD through hole threading in free machining steel
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Shank Style | Cylindrical shank with Square |
| Overall Length Inches | 2.2047 |
| Number of Flutes | 2 |
| Helix Angle | 30 Deg. |
| Coating/Finish | Steam Tempered |
| Cutting Direction | Right |
| Material | HSS |
| Overall Length Metric | 56 mm |
