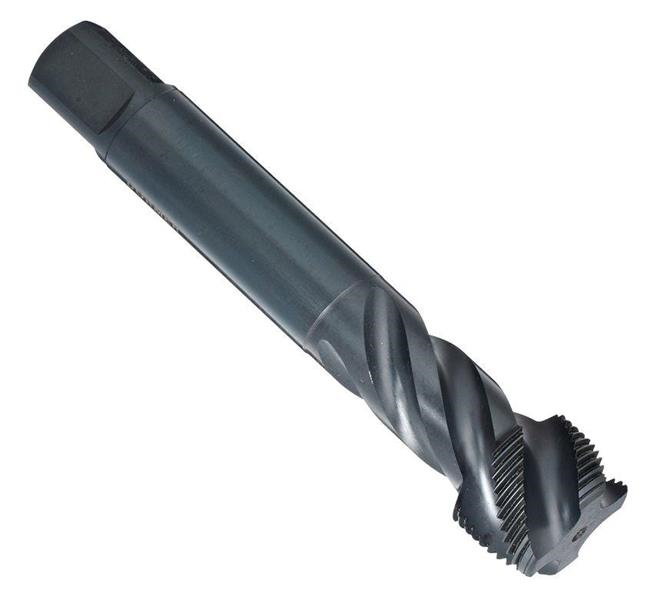

3/8-19 in. BSPP Cobalt Oxide Finish Spiral Flute Series EX41 Bottoming Pipe Tap

  • Item Code: 0168677
  • Brand: Dormer
  • Unit Size: 1

Description

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for British Standard Pipe thread G 3/8" with 19 TPI and Normal class of fit, dimensions according to DIN 5156 standard with 12.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45? helix angle for 2.5xD blind hole threading in general purpose applications

Features Tech Specs

Features

Back To Top
    • Steam oxide surface treatment reduces wear and chip welding in abrasive or harder ferrous materials.

Tech Specs

Back To Top
Brand Dormer
