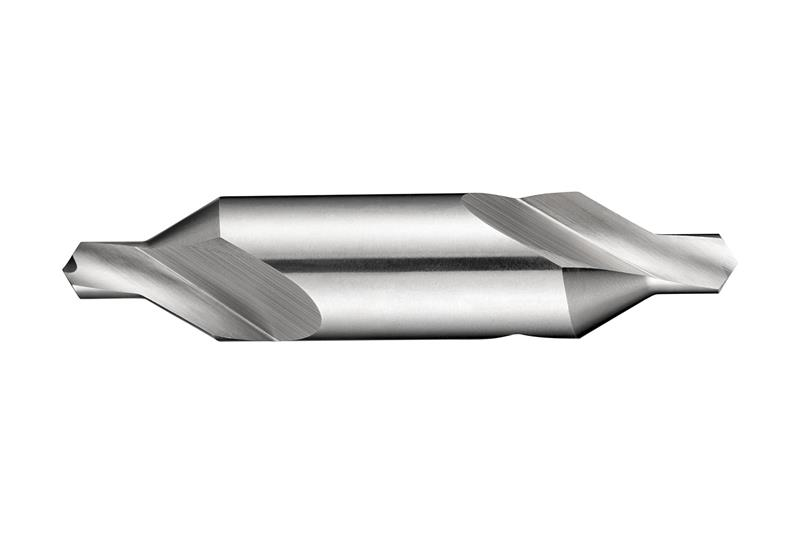

1/4 in. x 5/8 in. HSS Bright Finish 120 Deg. Combination Drill and Countersink (Center Drill)
- Item Code: 0173046
- Brand: Dormer
- Unit Size: 1
Description
Centre drill (combined drill and countersink) with 60 deg. straight conical form, double ended and cylindrical body, size BS6 with 1/4" drill diameter, a body diameter of 5/8" and an overall length of 3", according to BS 328 standard to produce form A centre holes, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Shank Style | Cylindrical shank |
|---|---|
| Coating/Finish | Bright |
| Fractional Diameter | 1/4" |
| Metric Diameter | 6.35 mm |
| Overall Length Fractional | 3" |
| Brand | Dormer |
| Material | High Speed Steel |
| Overall Length Decimal | 3.0000" |
| Overall Length Metric | 76.20 mm |
| Cutting Direction | Right |
| Decimal Diameter | 0.2500" |
| Point Angle | 120 Deg. |
