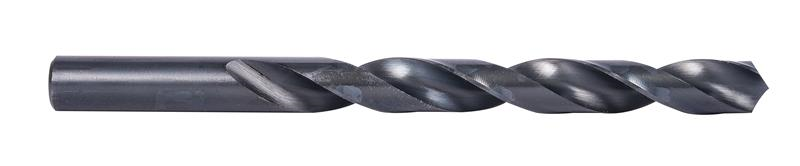

#76 (.0200) HSS HSS Oxide Finish 118 Deg. General Purpose Standard Point Jobber Drill
- Item Code: 018076
- Brand: Precision Twist Drill
- Unit Size: 1
Description
R18 jobber drills have a strong 118 degree conventional point which is easy to re-grind giving great economy The drills are manufactured from premium High Speed steel (HSS) for drilling a wide range of materials including steel, stainless steel and aluminum, and a steam oxide finish to prevent workpiece material from sticking to the cutting edges of the drill for clean and accurate holes. R18 jobber drills can be used in many different hand held and machine applications, and come in wire gauge sizes from 80 to 1.
ORDER IN MULTIPLES of 12
Tech Specs
Back To Top| Decimal Equivalent | 0.02 |
|---|---|
| Flute Length | 3/16" |
| Material | High Speed Steel |
| Overall Length | 7/8" |
| Size Units | Wire Gage Size |
| Finish/Coating | Oxide |
| Coating/Finish | Steam Tempered |
| Decimal Size | 0.02" |
| Depth of Cut | 4 x D |
| Overall Length Inches | 0.875" |
| Cutting Direction | Right |
| Point Angle | 118 |
| Brand | Precision Twist Drill |
| Material | HSS |
| Point Angle | 118 Deg. |
| Type | Standard Jobber Drill |
| Metric Size | 0.51 mm |
| Wire Size | #76 |
| Flute Type | Spiral |
| Overall Length Metric | 22.23 mm |
| Shank Style | Cylindrical shank |
| Series | R18 |
