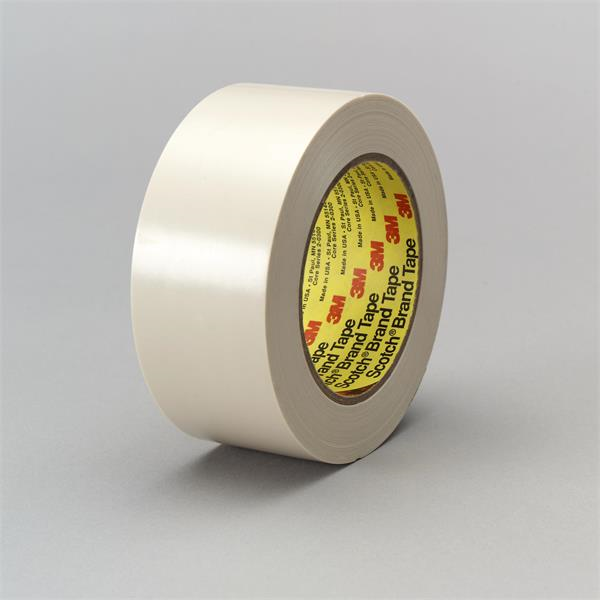

3/4 Inch x 36 Yard 7.1 mil, 3M Electroplating Tape 470 Tan, 48 per case Boxed

  • Item Code: 021200-05852
  • Brand: 3M
  • Unit Size: 1

Description

3M Electroplating Tape 470 is a vinyl backed tape with a rubber adhesive. It is resistant to most chemicals typically used in electroplating processes. With a conformable, abrasion resistant backing it's ideal for use with plating chemicals, electroplating nickel, electroless nickel, milling and etching in titanium and peening operations.

ORDER IN MULTIPLES of 48

Features Tech Specs

Features

Back To Top
    • Resists most common solvents and works at temperatures up to 17�F/76�C
    • Abrasion, moisture and wear resistant to withstand rugged working conditions
    • Conformable backing is ideal for use on curved and irregular surfaces
    • Rubber adhesive provides excellent holding strength on many surfaces

Tech Specs

Back To Top
Backing Thickness (metric) 0.16
Inner Cubic Dimension (FTQ) 0.213
Inner Depth/Length 5.75
Inner Gross Weight 5
Inner Height 11.125
Inner Total Pack Level Units 12
Inner UPC 30021200058524
Inner Width 5.75
Maximum Operating Temperature (Fahrenheit) 259
Shelf Life in Months (from date of manufacture) 18
Series 3M
Size Description 3/4 in x 36 yd
Tensile Strength 20 lb/in
Adhesive Type Rubber
Dimension 2 36 YD
Elongation 180 Percent
Maximum Operating Temperature (Celsius) 121
Adhesion to Steel oz/in (N/100 mm) 37 (40)
Length 36 Linear Yard
Length (Metric) 32.91 m
Tensile Strength (metric) 350
Backing Thickness 6.3
Brand 3M
Dimension 1 3/4 Inch
Inner Total Base Units 12
Width (Metric) 19.05 mm
Color Tan
Inner Pack Level Quantity 12
Product Form Roll
Total Thickness 7.1
Backing Material Vinyl
Width 0.75 Inch
