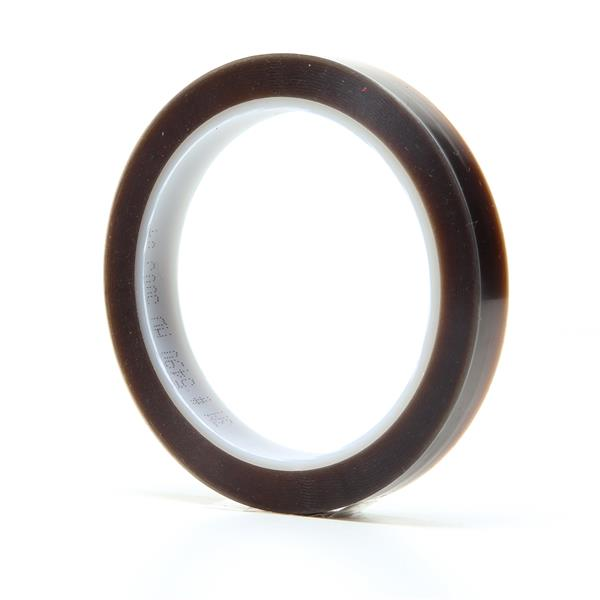

1/2 Inch x 36 Yard 3.5 mil, 3M PTFE Film Tape 5490 Gray, 18 per case Boxed

  • Item Code: 021200-07279
  • Brand: 3M
  • Unit Size: 1

Description

Our 3M PTFE Film Tape 5490 uses an?extruded polytetrafluoroethylene (PTFE) film backing, which has an extremely low coefficient of friction, in combination with a pressure sensitive silicone adhesive to create smooth, non-stick surfaces over a variety of substrates to assist in the movement of web materials in many types of roller and wrapper applications.

ORDER IN MULTIPLES of 18

Features Tech Specs

Features

Back To Top
    • Silicone adhesive provides clean removal from a variety of surfaces
    • Wide temperature range for performance on heated machinery and equipment
    • Extruded 3M�� PTFE Film Tape lies flatter than typical skived PTFE film tapes
    • Excellent chemical resistance enables tape to withstand challenging applications
    • High strength and abrasion resistance ensures reliability and performance to reduce friction, rattle and machinery noise

Tech Specs

Back To Top
Backing Thickness (metric) 0.05
Inner Gross Weight 0.2166
Inner Height 1.12
Inner UPC 30021200072797
Inner Width 6.32
Size Description 1/2 in x 36 yd
Dimension 2 36 YD
Length (Metric) 32.91 m
Width (Metric) 12.7 mm
Brand 3M
Inner Total Pack Level Units 2
Tensile Strength 22 lb/in
Adhesive Type Silicone
Dimension 1 1/2 Inch
Product Form Roll
Tensile Strength (metric) 385
Adhesion to Steel oz/in (N/100 mm) 27 (29)
Shelf Life in Months (from date of manufacture) 18
Total Thickness 3.7
Backing Thickness 2
Color Gray
Inner Total Base Units 2
Width 0.5 Inch
Minimum Operating Temperature (Fahrenheit) -65 Degree Fahrenheit
Elongation 150 Percent
Inner Depth/Length 6.32
Inner Pack Level Quantity 2
Length 36 Linear Yard
Maximum Operating Temperature (Fahrenheit) 500
Series 3M
Backing Material Extruded PTFE
Inner Cubic Dimension (FTQ) 0.026
Maximum Operating Temperature (Celsius) 260
