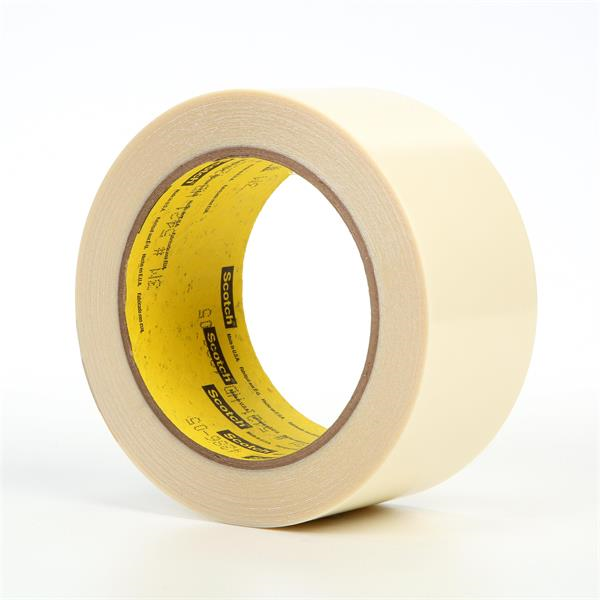

2 Inch x 18 Yard 6.7 mil, 3M UHMW Film Tape 5421 Transparent, 6 per case Boxed

  • Item Code: 021200-08009
  • Brand: 3M
  • Unit Size: 1

Description

3M UHMW-PE Film Tape 5421 is a general purpose polyethylene tape used to protect surfaces from abrasion and creates a "slip plane" effect to allow contact without wear. This tape features a unique combination of properties that make it ideal for many tough impact wear or sliding applications.

ORDER IN MULTIPLES of 6

Features Tech Specs

Features

Back To Top
    • Low coefficient of friction for ��slip plane�� effect between surfaces
    • Rubber adhesive provides good initial tack for immediate bonding to material surface
    • Can help reduce squeaks, rattles and other noises that occur with movement
    • Used in applications where lubrication is not possible because of contamination
    • Liner makes it ideal for fabricating or die-cutting into various lengths and shapes

Tech Specs

Back To Top
Backing Thickness 5
Backing Thickness (metric) 0.13
Breaking Strength 30
Elongation 275 Percent
Size Description 2 in x 18 yd
Tensile Strength (metric) 526
Total Thickness 6.7
Backing Material Ultra-high molecular weight polyethylene
Length (Metric) 16.45 m
Adhesion to Steel oz/in (N/100 mm) 26 (28)
Brand 3M
Length 18 Linear Yard
Minimum Operating Temperature (Fahrenheit) -30 Degree Fahrenheit
Series 3M
Adhesive Type Rubber
Liner Type 60# Densified Kraft, Silicone Treated Paper
Maximum Operating Temperature (Fahrenheit) 225
Product Form Roll
Dimension 1 2 Inch
Maximum Operating Temperature (Celsius) 107
Width 2 Inch
Color Transparent
Width (Metric) 50.8 mm
Shelf Life in Months (from date of manufacture) 18
Dimension 2 18 YD
Tensile Strength 30 lb/in
