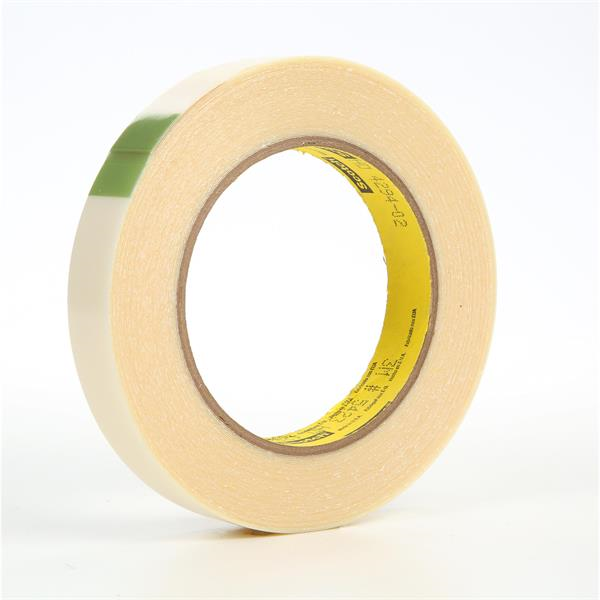

3/4 Inch x 18 Yard 11.7 mil, 3M UHMW Film Tape 5423 Transparent, 12 per case Boxed

  • Item Code: 021200-11991
  • Brand: 3M
  • Unit Size: 1

Description

3M UHMW Film Tape 5423 is used to protect surfaces from abrasion and creates a "slip plane" effect to allow contact without wear. This tape's thick 10.0 mil backing offers excellent abrasion resistance, making it ideal for many tough impact wear or sliding applications.

ORDER IN MULTIPLES of 12

Features Tech Specs

Features

Back To Top
    • Low coefficient of friction for ��slip plane�� effect between surfaces
    • Rubber adhesive provides good initial tack for immediate bonding to material surface
    • Can help reduce squeaks, rattles and other noises that occur with movement
    • Used in applications where lubrication is not possible because of contamination
    • Liner makes it ideal for fabricating or die-cutting into various lengths and shapes

Tech Specs

Back To Top
Inner Cubic Dimension (FTQ) 0.019
Inner Height 6.812
Inner Pack Level Quantity 2
Inner Total Base Units 2
Inner UPC 30021200119911
Inner Width 6.375
Length (Metric) 16.45 m
Brand 3M
Inner Total Pack Level Units 2
Width (Metric) 19.05 mm
Backing Thickness 10
Backing Thickness (metric) 0.25
Color Transparent
Inner Depth/Length 0.75
Inner Gross Weight 0.6
Length 18 Linear Yard
Tensile Strength 55 lb/in
Dimension 1 3/4 Inch
Dimension 2 18 YD
Shelf Life in Months (from date of manufacture) 18
Liner Type 60# Densified Kraft, Silicone Treated Paper
Tensile Strength (metric) 963
Width 0.75 Inch
Adhesive Type Rubber
Maximum Operating Temperature (Fahrenheit) 225
Product Form Roll
Elongation 300 Percent
Maximum Operating Temperature (Celsius) 107
Minimum Operating Temperature (Fahrenheit) -30 Degree Fahrenheit
Series 3M
Size Description 3/4 in x 18 yd
Adhesion to Steel oz/in (N/100 mm) 26 (28)
Total Thickness 11.7
Backing Material Ultra-high molecular weight polyethylene
Breaking Strength 55
