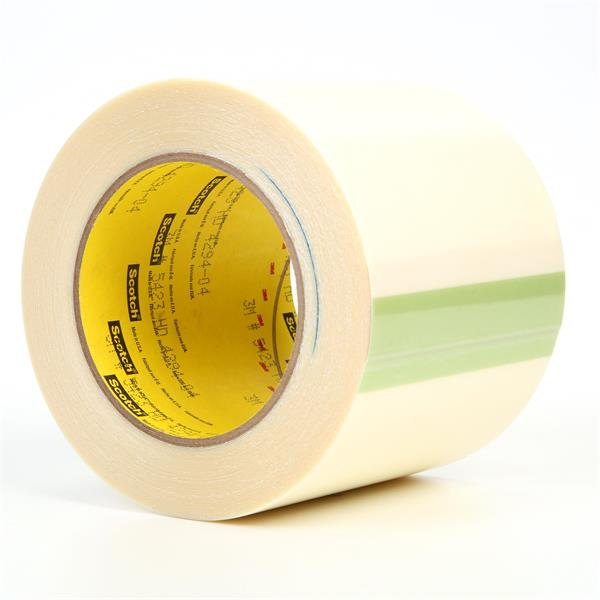

4 Inch x 18 Yard 11.7 mil, 3M UHMW Film Tape 5423 Transparent, 3 per case Bulk
- Item Code: 021200-14457
- Brand: 3M
- Unit Size: 1
Description
3M UHMW Film Tape 5423 is used to protect surfaces from abrasion and creates a "slip plane" effect to allow contact without wear. This tape's thick 10.0 mil backing offers excellent abrasion resistance, making it ideal for many tough impact wear or sliding applications.
ORDER IN MULTIPLES of 3
Features
Back To Top- Low coefficient of friction for ��slip plane�� effect between surfaces
- Rubber adhesive provides good initial tack for immediate bonding to material surface
- Can help reduce squeaks, rattles and other noises that occur with movement
- Used in applications where lubrication is not possible because of contamination
- Liner makes it ideal for fabricating or die-cutting into various lengths and shapes
Tech Specs
Back To Top| Adhesion to Steel oz/in (N/100 mm) | 26 (28) |
|---|---|
| Adhesive Type | Rubber |
| Maximum Operating Temperature (Celsius) | 107 |
| Size Description | 4 in x 18 yd |
| Tensile Strength (metric) | 963 |
| Total Thickness | 11.7 |
| Width | 4 Inch |
| Brand | 3M |
| Length (Metric) | 16.45 m |
| Minimum Operating Temperature (Fahrenheit) | -30 Degree Fahrenheit |
| Series | 3M |
| Tensile Strength | 55 lb/in |
| Elongation | 300 Percent |
| Liner Type | 60# Densified Kraft, Silicone Treated Paper |
| Maximum Operating Temperature (Fahrenheit) | 225 |
| Product Form | Roll |
| Backing Thickness | 10 |
| Breaking Strength | 55 |
| Dimension 1 | 4 Inch |
| Dimension 2 | 18 YD |
| Length | 18 Linear Yard |
| Backing Thickness (metric) | 0.25 |
| Shelf Life in Months (from date of manufacture) | 18 |
| Width (Metric) | 101.6 mm |
| Backing Material | Ultra-high molecular weight polyethylene |
| Color | Transparent |
