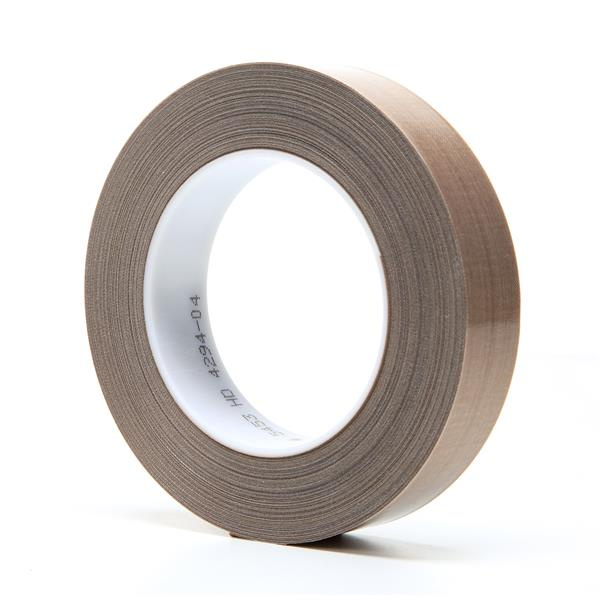

1 Inch x 36 Yard 8.3 mil, 3M PTFE Glass Cloth Tape 5453 Brown, 9 per case Boxed

  • Item Code: 021200-16160
  • Brand: 3M
  • Unit Size: 1

Description

3M PTFE Glass Cloth Tape 5453 is a 8.2 mil brown glass cloth tape impregnated with PTFE (Polytetrafluoroethylene.) It is coated with a pressure sensitive silicone adhesive that bonds easily to provide a slick release surface on rollers, binders, formers on stitchers and other process machinery.

ORDER IN MULTIPLES of 9

Features Tech Specs

Features

Back To Top
    • Meets several aerospace specifications
    • Silicone adhesive offers high temperature performance and long aging
    • Provides a non-stick, low friction surface on heat sealing and packaging equipment
    • Thicker backing helps extend the service life over thinner versions when subjected to abrasion and wear
    • Performs under a wide range of temperatures, including up to 5�F/26�C
    • Very low moisture absorption allows the tape to perform in many humid environments
    • Excellent chemical resistance enables tape to withstand challenging applications

Tech Specs

Back To Top
Backing Material Woven glass cloth impregnated w/PTFE
Backing Thickness 6
Backing Thickness (metric) 0.15
Elongation 5 Percent
Inner Depth/Length 6.32
Inner Gross Weight 1.085
Inner Pack Level Quantity 1
Inner Total Base Units 1
Inner Total Pack Level Units 1
Inner UPC 30021200161606
Minimum Operating Temperature (Fahrenheit) -100 Degree Fahrenheit
Tensile Strength (metric) 3065
Inner Height 1.12
Shelf Life in Months (from date of manufacture) 18
Adhesive Type Silicone
Series 3M
Size Description 1 in x 36 yd
Adhesion to Steel oz/in (N/100 mm) 55 (56)
Width (Metric) 25.4 mm
Brand 3M
Inner Width 6.32
Length (Metric) 32.91 m
Color Brown
Maximum Operating Temperature (Celsius) 260
Length 36 Linear Yard
Maximum Operating Temperature (Fahrenheit) 500
Inner Cubic Dimension (FTQ) 0.026
Product Form Roll
Dimension 1 1 Inch
Dimension 2 36 YD
Tensile Strength 175 lb/in
Total Thickness 8.2
Width 1 Inch
