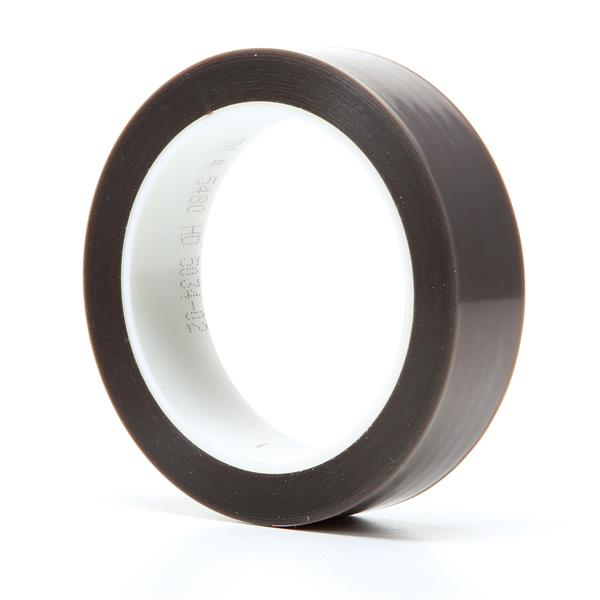

1 Inch x 36 Yard 3.8 mil, 3M PTFE Film Tape 5480 Gray, 9 per case Boxed
- Item Code: 021200-16166
- Brand: 3M
- Unit Size: 1
Description
The 3M PTFE Film Tape 5480 is designed to wrap rollers in manufacturing processes to create a release surface that helps minimize clean-up. This product is conformable and offers temperature and chemical resistance for sealing and masking.
ORDER IN MULTIPLES of 9
Features
Back To Top- Silicone adhesive provides clean removal from a variety of surfaces
- Wide temperature range for performance on heated machinery and equipment
- Skived 3M�� PTFE Film Tapes are more conformable than typical extruded PTFE film tapes
- Excellent chemical resistance enables tape to withstand challenging applications
Tech Specs
Back To Top| Shelf Life in Months (from date of manufacture) | 18 |
|---|---|
| Total Thickness | 3.7 |
| Adhesion to Steel oz/in (N/100 mm) | 20 (22) |
| Backing Thickness (metric) | 0.05 |
| Elongation | 140 Percent |
| Size Description | 1 in x 36 yd |
| Series | 3M |
| Tensile Strength | 27 lb/in |
| Backing Material | Skived PTFE |
| Tensile Strength (metric) | 473 |
| Width (Metric) | 25.4 mm |
| Brand | 3M |
| Length (Metric) | 32.91 m |
| Backing Thickness | 2 |
| Product Form | Roll |
| Dimension 1 | 1 Inch |
| Dimension 2 | 36 YD |
| Width | 1 Inch |
| Adhesive Type | Silicone |
| Length | 36 Linear Yard |
| Maximum Operating Temperature (Fahrenheit) | 500 |
| Minimum Operating Temperature (Fahrenheit) | -65 Degree Fahrenheit |
| Color | Gray |
| Maximum Operating Temperature (Celsius) | 260 |
