1-1/2 Inch x 36 Yard 7.1 mil, 3M Electroplating Tape 470 Tan, 24 per case Bulk

  • Item Code: 021200-86147
  • Brand: 3M
  • Unit Size: 1

Description

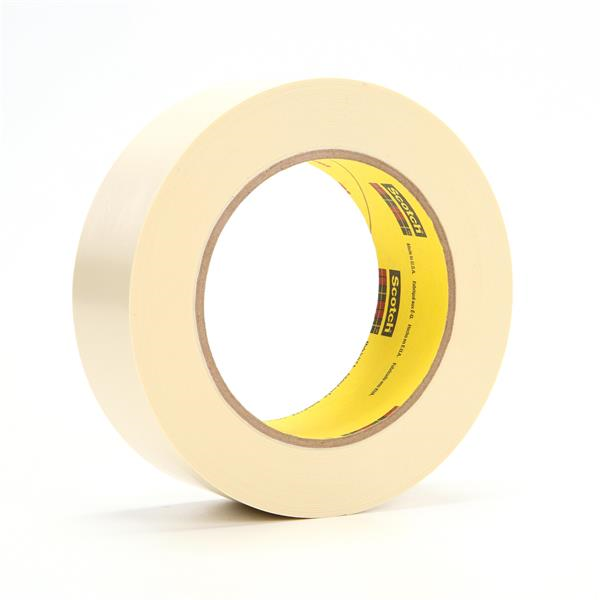

3M Electroplating Tape 470 is a vinyl backed tape with a rubber adhesive. It is resistant to most chemicals typically used in electroplating processes. With a conformable, abrasion resistant backing it's ideal for use with plating chemicals, electroplating nickel, electroless nickel, milling and etching in titanium and peening operations.

24 PER CASE

Features Tech Specs

Features

Back To Top
    • Resists most common solvents and works at temperatures up to 17�F/76�C
    • Abrasion, moisture and wear resistant to withstand rugged working conditions
    • Conformable backing is ideal for use on curved and irregular surfaces
    • Rubber adhesive provides excellent holding strength on many surfaces

Tech Specs

Back To Top
Backing Thickness 6.3
Maximum Operating Temperature (Fahrenheit) 254
Size Description 1-1/2 in x 36 yd
Tensile Strength 20 lb/in
Total Thickness 7.1
Width 1.5 Inch
Dimension 2 36 YD
Backing Material Vinyl
Tensile Strength (metric) 350
Adhesive Type Rubber
Length 36 Linear Yard
Product Form Roll
Color Tan
Length (Metric) 32.91 m
Series 3M
Dimension 1 1 1/2 Inch
Elongation 180 Percent
Adhesion to Steel oz/in (N/100 mm) 37 (40)
Backing Thickness (metric) 0.16
Maximum Operating Temperature (Celsius) 121
Shelf Life in Months (from date of manufacture) 18
Width (Metric) 38.1 mm
Brand 3M
Product Category Adhesives, Sealants, Tape
