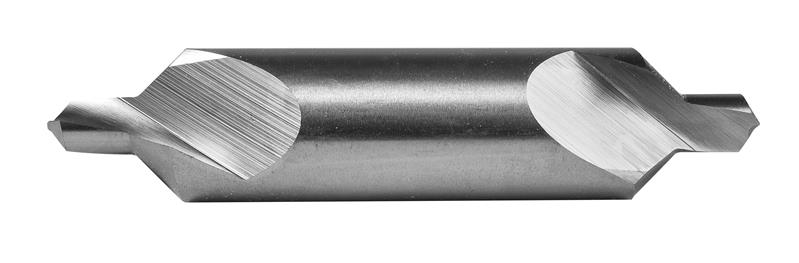

#2x 1-7/8in OAL HSS 90 Deg. Included Angle Combination Drill and Countersink (Center Drill)
- Item Code: 0239308
- Brand: Dormer
- Unit Size: 1
Description
Centre drill (combined drill and countersink) with 90 deg. straight conical form, double ended and cylindrical body, size 2 with 5/64" drill diameter, a body diameter of 3/16" and an overall length of 1.7/8", according to ANSI standard to produce form A centre holes or starting pilot and concial seat for ISO Metric countersunk-head screws, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Material | High Speed Steel |
| Overall Length Metric | 47.63 mm |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Shank Style | Cylindrical shank |
| Overall Length Decimal | 1.8750" |
| Decimal Diameter | 0.0781" |
| Metric Diameter | 1.98 mm |
| Overall Length Fractional | 1-7/8" |
| Point Angle | 120 Deg. |
