#6 x 3 in OAL HSS 90? Included Angle Combination Drill and Countersink (Center Drill)
- Item Code: 0239346
- Brand: Dormer
- Unit Size: 1
Description

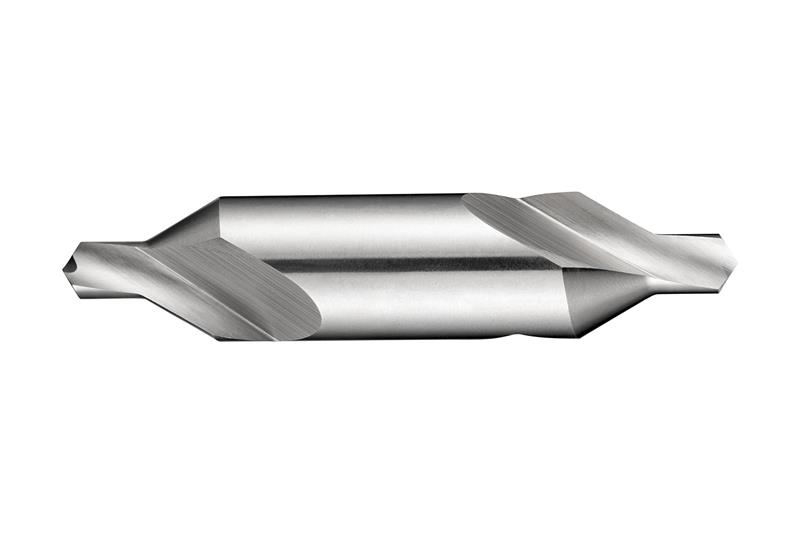

Centre drill (combined drill and countersink) with 90 deg. straight conical form, double ended and cylindrical body, size 6 with 7/32" drill diameter, a body diameter of 1/2" and an overall length of 3", according to ANSI standard to produce form A centre holes or starting pilot and concial seat for ISO Metric countersunk-head screws, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Material | High Speed Steel |
| Coating/Finish | Bright |
| Overall Length Decimal | 3.0000" |
| Shank Style | Cylindrical shank |
| Overall Length Metric | 76.20 mm |
| Decimal Diameter | 0.2188" |
| Overall Length Fractional | 3" |
| Point Angle | 120 Deg. |
| Metric Diameter | 5.56 mm |
| Cutting Direction | Right |
