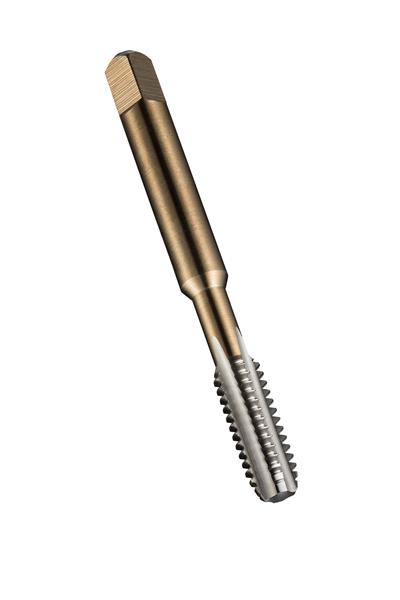

9/16-12 in. UNC HSS Bright H3 Straight Flute 2B/3B Taper Hand Tap
- Item Code: 0351833
- Brand: Dormer
- Unit Size: 1
Description
Straight flute hand tap NO1 with a 6-8xP taper lead, for Unified National Coarse thread UNC 9/16" with 12 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.4290" shank and 0.3220" square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys
Tech Specs
Back To Top| Overall Length Fractional | 3-19/32" |
|---|---|
| Coating/Finish | Bright |
| Number of Flutes | 4 |
| Cutting Direction | Right |
| Overall Length Metric | 91.28 mm |
| Material | HSS |
| Overall Length Inches | 3.5938" |
| Shank Style | Cylindrical shank with Square |
| Brand | Dormer |
