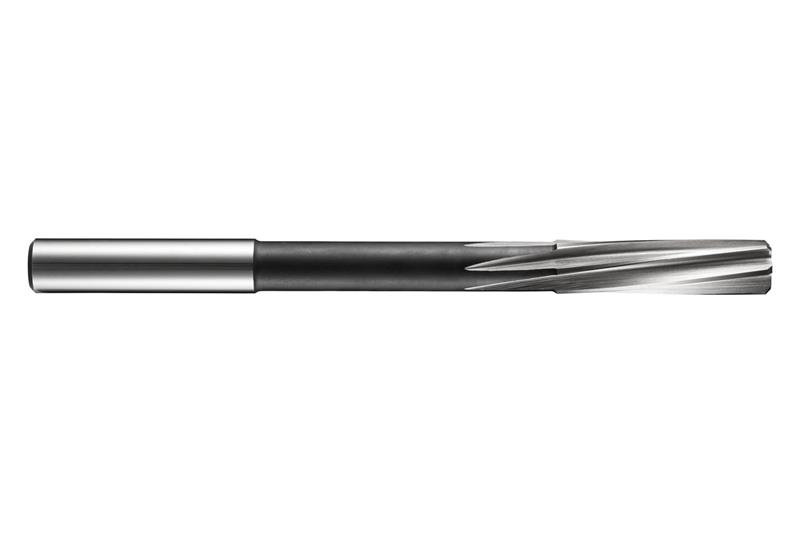

3 mm Cobalt (HSS-E) Bright Finish B+ Flute Cylindrical NC Chucking Reamer
- Item Code: 0418901
- Brand: Dormer
- Unit Size: 1
Description
Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 3.00mm with an overall length of 61mm, a flute length of 15mm and 32mm reach with neck relief, according to DIN 212 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Overall Length Decimal | 2.4016" |
|---|---|
| Overall Length Metric | 61.00 mm |
| Material | Cobalt |
| Shank Style | Cylindrical shank DIN 6535 HA |
| Cutting Direction | Right |
| Number of Flutes | 6 |
| Brand | Dormer |
| Coating/Finish | Bright |
| Decimal Diameter | 0.1181" |
| Metric Diameter | 3.00 mm |
