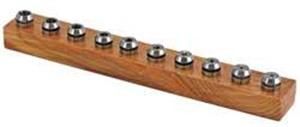

3mm - 10mm ER16 8 Piece Steel Sealed Collet Set
- Item Code: 04543MS
- Brand: Techniks
- Unit Size: 1
Description
Techniks Steel Sealed Collets are compatible with any standard ER, RD, DR, ESX, or BR Collet Chucks for coolant-thru tool applications. Steel Sealed Collets perfect for High Pressure Coolant applications because they are sealed to 2000 PSI with no plugs to fail. The coolant-thru design protects the toolholder from contaminants.
Tech Specs
Back To Top| Capacity (mm) | 3 - 10 |
|---|---|
| Capacity (in) | 0.118 - 0.394 |
| Style | Single Angle |
| Unit of Tool | Metric |
| Series | ER16 |
| Type | Steel Sealed Coolant |
| Incremental Division | 1mm |
| Number of Pieces | 8 |
| Brand | Techniks |
