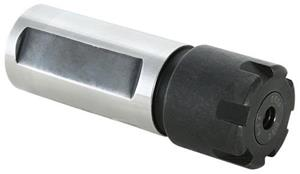

ER11 x 3/4 Inch, 2.5 Inch Coolant Double-Ended Straight Shank Collet Chuck

  • Item Code: 04801-DE
  • Brand: Techniks
  • Unit Size: 1

Description

Double-Ended ER Straight Shank Chucks for Swiss style turning machines

ER double-ended collet chucks handle a wide range of machining jobs without having to buy new tool holders. Simply choose the right size collet for the job, set tool depth, and tighten the collet nut to proper torque using a torque wrench and tightening fixure.

Techniks tool holders are manufactured to the highest possible standards to extend perishable cutting tool life and improve CNC machine performance.

Features Tech Specs

Features

Back To Top
    • 0.0001" runout from shank to pocket
    • Wrench flats extend full length of shank
    • Works with ER Mini nuts

Tech Specs

Back To Top
Gage Length (in) 0.472
Overall Diameter (in) 0.75
Overall Length (in) N/A
Style Double Ended
Gage Length (mm) 12
Balanced to N/A
Body Diameter-Workpiece Side (mm) 19
Brand Techniks
Collet Series ER11
Overall Diameter (mm) 19.05
Type SS Collet Chuck
Body Diameter-Workpiece Side (in) 0.748
Capacity Range (in) 0.019" - 0.28"
Capacity Range (mm) 0.5 - 7.1mm
Gage Length-Face Contact (mm) N/A
Material 8620 Steel
Unit of Tool Metric or Inch
Gage Length-Face Contact (in) N/A
Lock Nut Diameter (in) 0.75
Lock Nut Diameter (mm) 19.1
Taper 3/4" Straight Shank
Overall Length (mm) N/A
