2 Inch x 1/4 Inch x 13/16 Inch, 3M Unitized Wheel Mandrel 932, 5 per case
- Item Code: 048011-13967
- Brand: 3M
- Unit Size: 1
Description

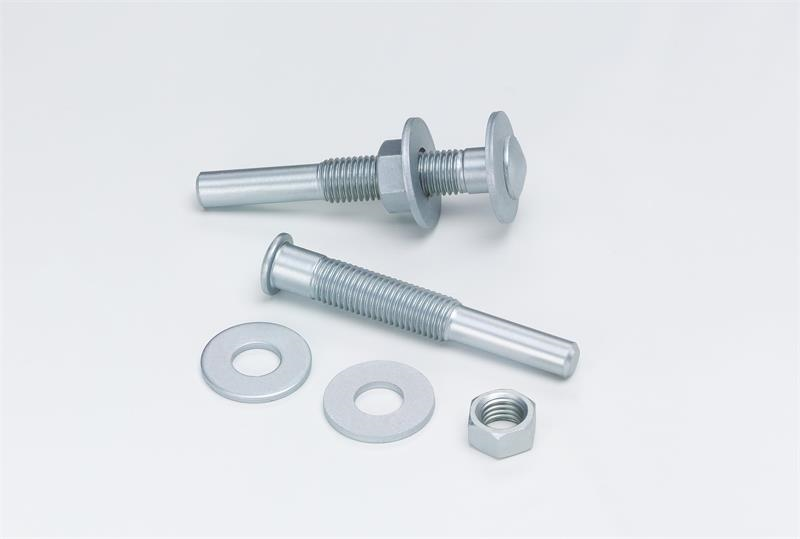

3M™ Unitized Wheel Mandrel secures a small Scotch-Brite™ unitized sanding wheel to a rotary tool such as a die grinder for edge deburring and finishing applications. The flanges fit on either side of the wheel and are secured with the retainer nut.
Features
Back To Top- Small size enables access to small or intricate workpieces
- Max RPM 14,
- Use with wheels 2"-3" diameter and 1/4"-1" thick
Tech Specs
Back To Top| Outside Flange Diameter | 0.18 |
|---|---|
| Outside Flange Diameter (metric) | 4.57 |
| Size Description | 2 in x 1/4 in x 13/16 in |
| Converted Form | Mandrel;Mandrel/Spindle |
| Form Type | Unitized Wheel |
| Length | 2 Inch |
| Max RPM | 20000 |
| Overall Length (metric) | 50.8 |
| Shank Size | 0.25 |
| Brand | 3M |
| Shank Size (metric) | 6.35 |
| Type | Regular |
| Length (Metric) | 50.8 mm |
| Attachment Type | Shaft |
| Function/Attachment Style | Mechanical Attachment |
| Series | 3M™ |
| Overall Length | 2 |
| Product Form | Mandrel |
