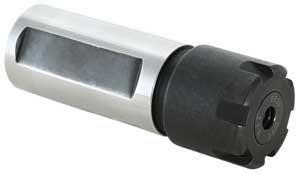

ER20 x 1 Inch Hex Nut 3 Inch Coolant Fed Straight Shank Holder
- Item Code: 04805-C
- Brand: Techniks
- Unit Size: 1
Description
ER straight shank collet chucks handle a wide range of machining jobs without having to buy new tool holders. Simply choose the right size collet for the job, set tool depth, and tighten the collet nut to proper torque using a torque wrench and tightening fixure.
Use "Power Coat" nuts to increase the holding power and safety of your tool holders. High holding power extends cutting tool life and improves surface finish.
Features
Back To Top- Seals up to 1,500 psi
- 0.0001" runout from shank to pocket
- PowerCOAT coolant nut included
Tech Specs
Back To Top| Capacity Range (mm) | 0.5 - 14mm |
|---|---|
| Gage Length (mm) | 27.178 |
| Brand | Techniks |
| Material | 8620 Steel |
| Balanced to | N/A |
| Body Diameter-Workpiece Side (mm) | 34 |
| Gage Length (in) | 1.07 |
| Capacity Range (in) | 0.019" - 0.55" |
| Lock Nut Diameter (in) | 1.38 |
| Taper | 1.0" Straight Shank |
| Collet Series | ER20 |
| Gage Length-Face Contact (in) | N/A |
| Gage Length-Face Contact (mm) | N/A |
| Unit of Tool | Metric or Inch |
| Overall Diameter (in) | 1 |
| Overall Length (in) | N/A |
| Body Diameter-Workpiece Side (in) | 1.339 |
| Lock Nut Diameter (mm) | 35.1 |
| Overall Diameter (mm) | 25.4 |
| Overall Length (mm) | N/A |
| Style | Single Ended |
| Type | SS Collet Chuck Extension |
