1/8 Inch x 3/4 Inch x 1/4 Inch x 1-1/4 Inch x 2-1/2 Inch CM-8, Cartridge Roll Mandrel 700717, 1 per case
- Item Code: 051115-32842
- Brand: 3M
- Unit Size: 1
Description
Standard Abrasives Cartridge Roll Mandrels is a tool attachment that holds an abrasive cartridge roll (sold separately). Together, the mandrel and cartridge roll grind and finish hard-to-reach areas of a workpiece, such as angles and curves.
ORDER IN MULTIPLES of 5
Features

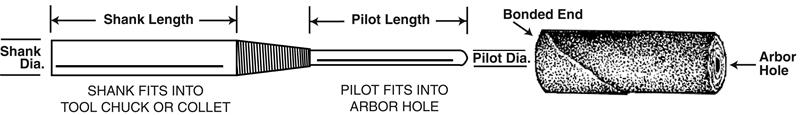

Back To Top- Shank of the mandrel is secured into the collet assembly or drill chuck of a rotary power tool
- Mandrel enables access to tight spaces with a cartridge roll
- Comes in various pilot diameters and lengths to fit different cartridge rolls
- Made of plated steel for enhanced durability
Tech Specs
Back To Top| Converted Form | Mandrel |
|---|---|
| Dimension 2 | 2 1/2 in |
| Pilot Length | 0.75 |
| Size Description | 1/8x3/4x1/4x1 1/4 |
| Attachment Type | Threaded |
| Length | 2.5 Inch |
| Length (Metric) | 63.5 mm |
| Shank Length (metric) | 31.75 |
| Pilot Diameter | 0.12 |
| Shank Length | 1.25 |
| Corporate Division Code Description | Abrasives Systems Division |
| Form Type | Cartridge Roll |
| Product Form | Mandrel |
| Brand | 3M |
| Pilot Diameter (metric) | 3.05 |
| Shank Size (metric) | 6.35 |
| Pilot Length (metric) | 19.05 |
| Corporate Division Code | AB |
| Dimension 1 | 1/4 in |
| Shank Size | 0.25 |
