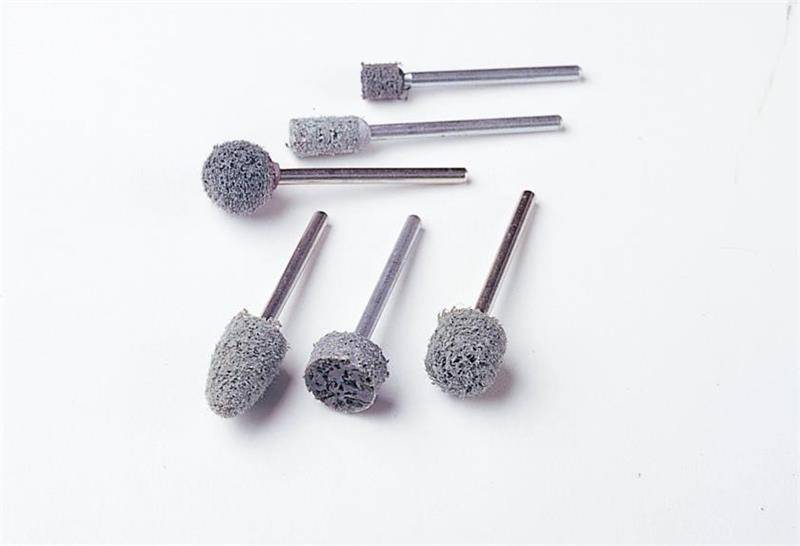

W163 x 1/8 Inch, Unitized Mounted Point 877041, 731, 5 per inner 50 per case

  • Item Code: 051115-35302
  • Brand: 3M
  • Unit Size: 1

Description

The Standard Abrasives Unitized Mounted Point lightly deburrs, blends and finishes metal and plastic parts. Choose from many different shapes and sizes to match specific small parts with hard-to-reach areas. Unitized mounted points deburr and finish without altering the shape of the workpiece, and self-dress to continually expose fresh mineral during use for efficient operations.

ORDER IN MULTIPLES of 5

Features Tech Specs

Features

Back To Top
    • Mounted point is securely fastened to a metal spindle for safe use with die grinders
    • Non-woven construction resists loading during use
    • Unitized production method compresses abrasive web for greater density and durability
    • Resists smearing for cleaner surfaces and less preparation
    • Self-dressing material exposes fresh grain through the life cycle
    • Silicon carbide grain produces finer, brighter finishes than aluminum oxide

Tech Specs

Back To Top
Max RPM 60000
Size Description W163 x 1/8 in
Diameter 0.25 Inch
Length (Metric) 12.7 mm
Brand 3M
Shank Size (metric) 3.04
Mineral Type Silicon Carbide
Shape W163
Corporate Division Code AB
Length 0.5 Inch
Shank Size 0.12
Attachment Type Shaft
Converted Form Mounted Point
Diameter (Metric) 6.35 mm
Dimension 1 1/4 in
Form Material 731
Form Type Unitized
Color Light Gray
Density 7
Corporate Division Code Description Abrasives Systems Division
Dimension 2 1/2 in
Grade FIN
