3/16 Inch x 1 Inch x 1/4 Inch x 1 Inch x 3 Inch CM-16, Cartridge Roll Mandrel 712689, 5 per case
- Item Code: 051115-37537
- Brand: 3M
- Unit Size: 1
Description

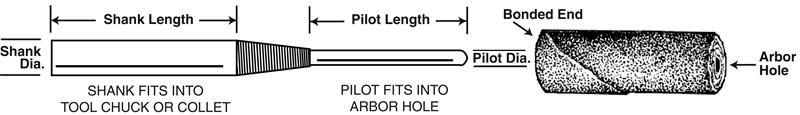

Standard Abrasives Cartridge Roll Mandrels is a tool attachment that holds an abrasive cartridge roll (sold separately).Together, the mandrel and cartridge roll grind and finish hard-to-reach areas of a workpiece, such as angles and curves.
ORDER IN MULTIPLES of 5
Features
Back To Top- Shank of the mandrel is secured into the collet assembly or drill chuck of a rotary power tool
- Mandrel enables access to tight spaces with a cartridge roll
- Comes in various pilot diameters and lengths to fit different cartridge rolls
- Made of plated steel for enhanced durability
Tech Specs
Back To Top| Dimension 1 | 1/4 in |
|---|---|
| Shank Length | 1 |
| Size Description | 3/16 inx1 inx1/4 inx1 inx3 in |
| Length (Metric) | 76.2 mm |
| Pilot Diameter | 0.18 |
| Pilot Diameter (metric) | 4.57 |
| Pilot Length (metric) | 25.4 |
| Product Form | Mandrel |
| Corporate Division Code | AB |
| Length | 3 Inch |
| Shank Length (metric) | 25.4 |
| Shank Size | 0.25 |
| Form Type | Cartridge Roll |
| Pilot Length | 1 |
| Attachment Type | Threaded |
| Brand | 3M |
| Converted Form | Mandrel |
| Corporate Division Code Description | Abrasives Systems Division |
| Dimension 2 | 3 in |
| Shank Size (metric) | 6.35 |
