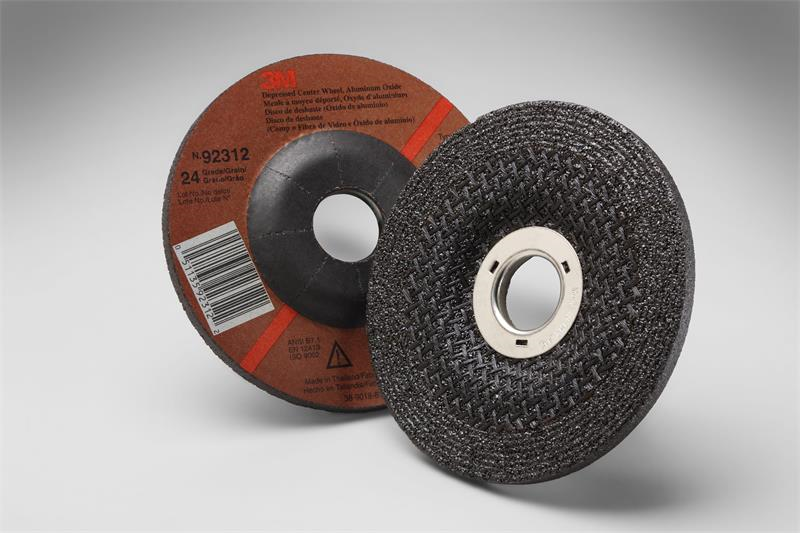

4-1/2 Inch x 1/4 Inch x 7/8 Inch, 24 Grade, General Purpose Depressed Center Wheel, 10 per inner 40 per case
- Item Code: 051135-92312
- Brand: 3M
- Unit Size: 1
Description
Depressed center wheels are an excellent economical solution for general purpose grinding and cutting applications on steel. MUST BE USED ON A TOOL WITH A GUARD.
Features
Back To Top- May be used on a variety of substrates such as carbon steel and stainless steel
- Aluminum oxide mineral cuts fast and yields great lifespan
- Use with tools and accessories designed for depressed center grinding wheels
- For safety, always use on a tool with an approved guard, as per ANSI B7.1
Tech Specs
Back To Top| Dimension 3 | 7/8 Inch |
|---|---|
| Inner Cubic Dimension (FTQ) | 0.061 |
| Inner Depth/Length | 5.12 |
| Inner Gross Weight | 3.34 |
| Inner Height | 4 |
| Inner UPC | 30051135923123 |
| Inner Width | 5.12 |
| Size Description | 4 1/2 in x 1/4 in x 7/8 in |
| Dimension 1 | 4 1/2 Inch |
| Dimension 2 | 1/4 Inch |
| Form Type | Type 27 |
| Mineral Type | Aluminum Oxide |
| Series | 3M™ |
| Brand | 3M |
| Converted Form | Depressed Center Grinding Wheel |
| Grade | 24 |
| Primary Application | Metalworking |
| Inner Pack Level Quantity | 10 |
| Inner Total Base Units | 10 |
| Max RPM | 13300 |
| Substrate Category | Metal |
| Thickness (Metric) | 6.35 |
| Center Hole Diameter (Metric) | 22.098 |
| Wheel Type | Type 27 |
| Diameter (Metric) | 114.3 mm |
| Inner Total Pack Level Units | 10 |
| Thickness | 0.25 |
| Thickness Metric Unit | mm |
| Color | Brown |
| Diameter | 4.5 Inch |
| Product Form | Wheel |
| Thickness Unit | Inch |
| Center Hole Diameter | 0.87 |
| Substrates | All Metals |
