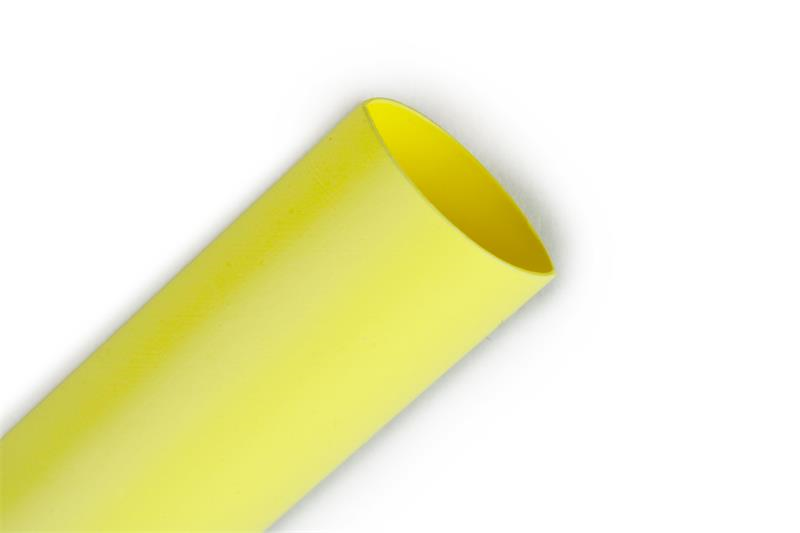

1/2 Inch x 200 Feet, Yellow, Heat Shrink Thin-Wall Tubing FP-301, 200 Feet Length per spool
- Item Code: 054007-08501
- Brand: 3M
- Unit Size: 200
Description
3M Heat Shrink Tubing FP-301 offers an outstanding balance of electrical, physical and chemical properties for a wide variety of industrial and military applications. This tubing comes in a bulk spool.
ORDER IN MULTIPLES of 1200
Tech Specs
Back To Top| Agency Approvals | CSA, UL Recognized |
|---|---|
| Dielectric Strength | 900 Volt |
| Expanded Inner Diameter | 1 |
| Flammability Rating | UL 224 All Tubing Flame Test |
| Inner Cubic Dimension (FTQ) | 0.51 |
| Inner Depth/Length | 21 |
| Inner Gross Weight | 3.1273 |
| Inner Pack Level Quantity | 200 |
| Inner Total Base Units | 200 |
| Inner Total Pack Level Units | 200 |
| Inner UPC | 30054007085011 |
| Inner Width | 21 |
| Length | 200 Linear Foot |
| Minimum Expanded Tubing I. D. | 1 |
| Operating Temperature (Celsius) | -55 to 135 Degrees Celsius |
| Recovered Inner Diameter | 1 |
| Tensile Strength | 2400 Pound-Force Per Square Inch |
| Tubing Type | Single (Thin) Wall |
| UL File Number | E-39100 |
| Inner Height | 2 |
| Material | Flexible Polyolefin |
| Mil Spec | AMS-DTL-23053/5, Class 1 |
| Color | Yellow |
| Flame Retardant | Yes |
| Brand | 3M |
| RoHS 2011/65/EU Compliant | Yes |
| Elongation | 400 |
| Series | 3M |
