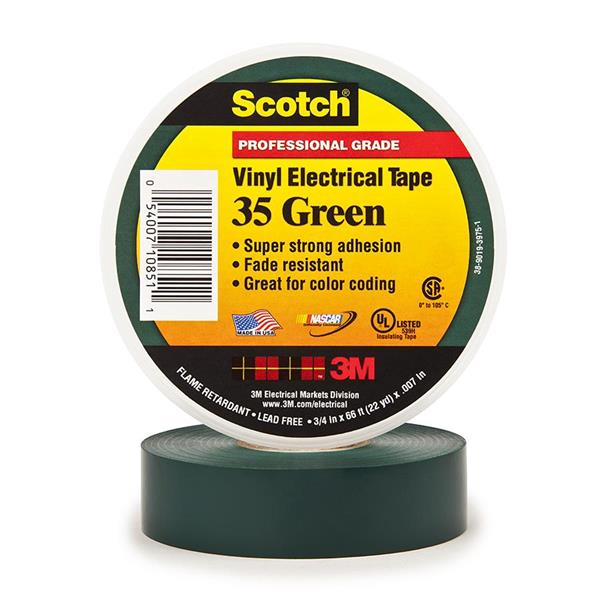

3/4 Inch x 66 Feet, Vinyl Color Coding Electrical Tape 35, Green

  • Item Code: 054007-10851
  • Brand: 3M
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • UL Listed and CSA Certified
    • 7-mil thick polyvinyl chloride (PVC) color-coding tape
    • Temperature range of 32��220�F (0��105�C)
    • Excellent for use in phase identification, color coding of motor leads and piping systems, and for marking safety areas
    • Abrasion- and weather-resistant
    • Flame-retardant; resists UV rays, abrasion, moisture, alkalies, solvents, many acids
    • Stretches to conform to virtually any shape

Tech Specs

Back To Top
Dielectric Strength 1250 V/mil
Elongation 225
Operating Temperature Range (Fahrenheit) 32 to 220 Degree Fahrenheit
UV Resistant Yes
Vulcanizing No
Backing Material Polyvinyl Chloride
Brand 3M
Color Green
Agency Approvals UL Listed
Insulated Yes
Length 66 Linear Foot
Thickness 7 mil
Voltage Application Low Voltage
Dimension 2 66 ft
Operating Temperature Range (Celsius) 0 to 105 Degree Celsius
Product Type Vinyl Tape
Specifications VDE 0340-TEIL1
Dimension 1 3/4 in
Length (Metric) 20.1 m
Series Scotch
Width (Metric) 19 mm
Material PVC
Tape Grade Premium
Tape Type Vinyl
Adhesive Material Rubber Resin
Breaking Strength 17
Size Description 3/4 in x 66 ft
Thickness (Metric) 0.177 mm
Width 0.75 Inch
