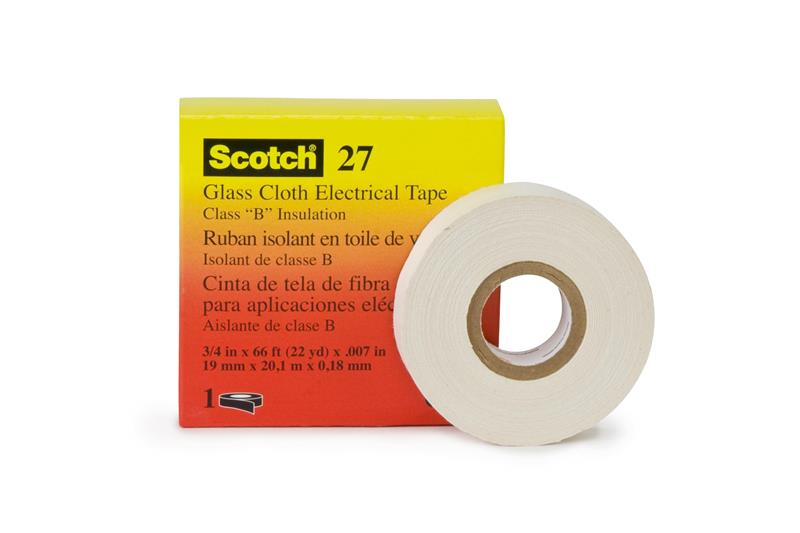

1/2 Inch x 66 ft, Glass Cloth Electrical Tape 27
- Item Code: 054007-15066
- Brand: 3M
- Unit Size: 1
Description
3M Glass Cloth Electrical Tape 27 is a 7-mil woven insulating tape with pressure-sensitive rubber thermosetting adhesive. This tape is designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures. The adhesive is specially designed and prepared to provide corrosion protection.
ORDER IN MULTIPLES of 10
Features
Back To Top- UL recognized
- 7-mil woven insulating glass cloth tape with pressure-sensitive rubber thermosetting adhesive
- Designed to operate in 6 volt dry applications requiring high mechanical strength and resistance to high temperatures
- Adhesive is specially designed and prepared to provide corrosion protection
- Edge-tear resistant, conformable, and abrasion resistant
- For use as a coil cover, anchor, banding and core, layer and crossover insulation
- Printable
Tech Specs
Back To Top| Breaking Strength | 150 |
|---|---|
| Core Material | Paper |
| Dielectric Strength | 3000 Volt |
| Dimension 2 | 66 FT |
| Inner Cubic Dimension (FTQ) | 0.059 |
| Inner Depth/Length | 7.7 |
| Inner Gross Weight | 1.45 |
| Inner Height | 3.625 |
| Inner UPC | 30054007150665 |
| Inner Width | 3.625 |
| Thickness | 7 |
| RoHS 2011/65/EU Compliant | Yes |
| Inner Total Pack Level Units | 10 |
| Operating Temperature Range (Celsius) | 0 to 150 Degree Celsius |
| Size Description | 1/2 in x 66 ft |
| Adhesion Strength | 30 Ounce |
| Color | White |
| Electrolytic Corrosion Factor | 0.9 |
| Length (Metric) | 20.1 m |
| Width | 0.5 Inch |
| Adhesion to Steel oz/in (N/100 mm) | 30 (33) |
| Backing Material | Glass cloth |
| Elongation | 5 |
| Inner Pack Level Quantity | 10 |
| Inner Total Base Units | 10 |
| Thickness Unit | mil |
| Adhesive Material | Thermosetable rubber resin |
| Tape Grade | Premium |
| Core Size | 3 |
| Thickness (Metric) | 0.177 |
| Agency Approvals | UL Listed |
| Brand | 3M |
| Dimension 1 | 1/2 Inch |
| Length | 66 Linear Foot |
| Thickness Metric Unit | mm |
| Insulation Resistance | 4.8 x 10^4 megohms |
| Operating Temperature Range (Fahrenheit) | 32 to 302 Degree Fahrenheit |
| Series | 3M |
| Tape Type | Special Use |
