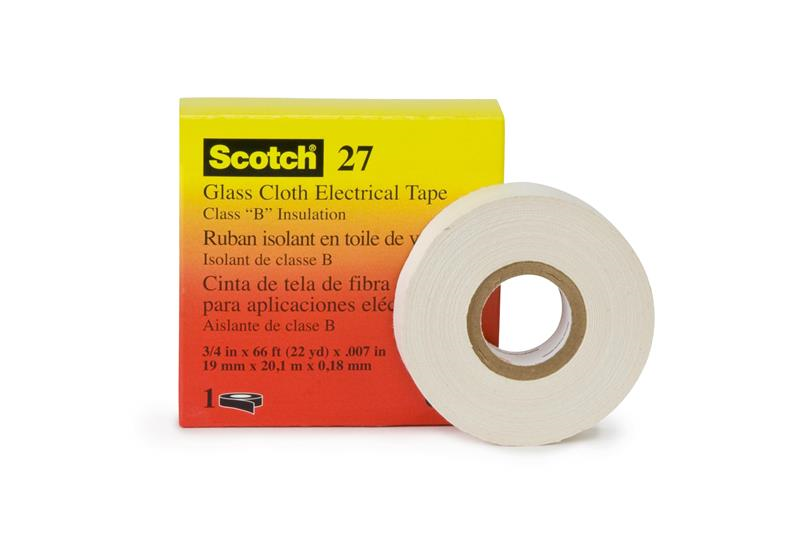

3/4 Inch x 66 ft, Glass Cloth Electrical Tape 27
- Item Code: 054007-15074
- Brand: 3M
- Unit Size: 1
Description
3M™ Glass Cloth Electrical Tape 27 is a 7-mil woven insulating tape with pressure-sensitive rubber thermosetting adhesive. This tape is designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures. The adhesive is specially designed and prepared to provide corrosion protection.
Features
Back To Top- UL recognized
- 7-mil woven insulating glass cloth tape with pressure-sensitive rubber thermosetting adhesive
- Designed to operate in 6 volt dry applications requiring high mechanical strength and resistance to high temperatures
- Adhesive is specially designed and prepared to provide corrosion protection
- Edge-tear resistant, conformable, and abrasion resistant
- For use as a coil cover, anchor, banding and core, layer and crossover insulation
- Printable
Tech Specs
Back To Top| Adhesion Strength | 30 Ounce |
|---|---|
| Adhesive Material | Thermosetable rubber resin |
| Agency Approvals | UL Listed |
| Elongation | 5 |
| Inner Depth/Length | 4.1 |
| Inner Gross Weight | 2.085 |
| Inner Height | 3.85 |
| Inner UPC | 30054007150740 |
| Inner Width | 7.85 |
| Insulation Resistance | 4.8 x 10^4 megohms |
| Length | 66 Linear Foot |
| Length (Metric) | 20.1 m |
| Operating Temperature Range (Celsius) | 0 to 150 Degree Celsius |
| Operating Temperature Range (Fahrenheit) | 32 to 302 Degree Fahrenheit |
| Size Description | 3/4 in x 66 ft |
| Thickness (Metric) | 0.177 |
| Thickness Unit | mil |
| Backing Material | Glass cloth |
| Inner Pack Level Quantity | 10 |
| Inner Total Base Units | 10 |
| Width | 0.75 Inch |
| Color | White |
| Dielectric Strength | 3000 Volt |
| Inner Total Pack Level Units | 10 |
| Core Size | 3 |
| Series | 3M |
| Inner Cubic Dimension (FTQ) | 0.072 |
| Tape Type | Special Use |
| RoHS 2011/65/EU Compliant | Yes |
| Tape Grade | Premium |
| Adhesion to Steel oz/in (N/100 mm) | 30 (33) |
| Brand | 3M |
| Breaking Strength | 150 |
| Dimension 1 | 3/4 Inch |
| Thickness | 7 |
| Core Material | Paper |
| Dimension 2 | 66 FT |
| Electrolytic Corrosion Factor | 0.9 |
| Thickness Metric Unit | mm |
