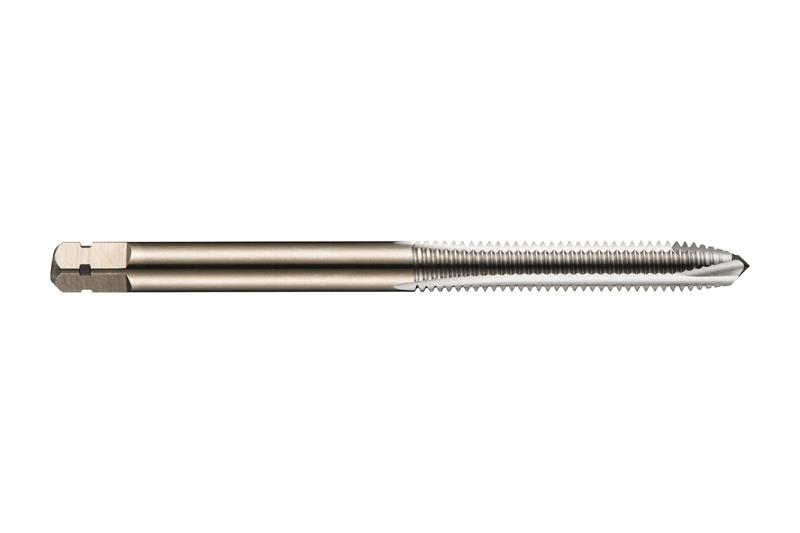

M10 x 1.50 mm Carbide (HSS-E) Gold Finish RH 2 Flute Coarse Plug Chamfer Spiral Point Tap
- Item Code: 0567647
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 10.0mm shank and 8.0mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys
Features
Back To Top- Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
- Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic
- Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Overall Length Metric | 80 mm |
| Coating/Finish | Bright |
| Overall Length Inches | 3.1496 |
| Shank Style | Cylindrical shank with Square |
| Material | HSS Cobalt Powdered Metal |
| Cutting Direction | Right |
| Number of Flutes | 3 |
