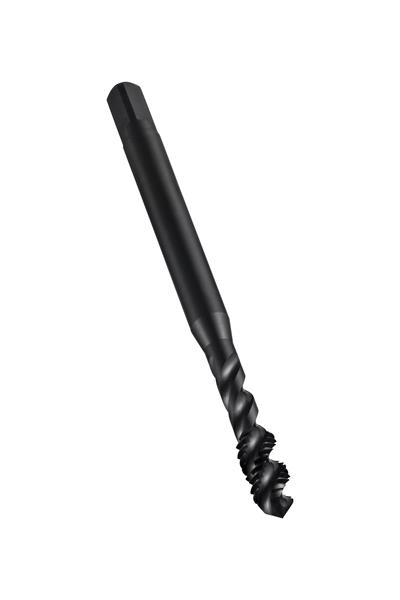

M24 x 3.00 mm Coarse Cobalt (HSS-E) Steam Oxide Finish 3 Flute RH 45 Deg. Semi-Bottoming Spiral Flute Tap
- Item Code: 0568132
- Brand: Dormer
- Unit Size: 1
Description
Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M24 with 3.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 18.0mm shank and 14.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45? helix angle for 2.5xD blind hole threading in general purpose applications
Features
Back To Top- Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads
- Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys
- Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
Tech Specs
Back To Top| Overall Length Inches | 5.1181 |
|---|---|
| Brand | Dormer |
| Coating/Finish | Steam Tempered |
| Number of Flutes | 4 |
| Cutting Direction | Right |
| Helix Angle | 45 Deg. |
| Overall Length Metric | 130 mm |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
