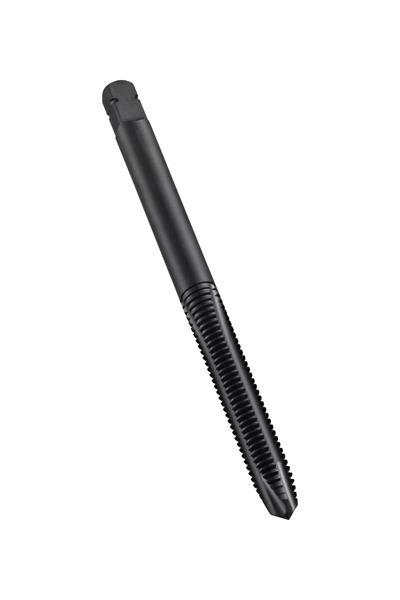

8 mm x 1 mm Coarse Cobalt (HSS-E) Steam Oxide Finish 3 Flute RH Semi-Bottoming Chamfer Spiral Flute Tap
- Item Code: 0568385
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric Fine thread M4 with 0.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 4.0mm shank and 3.15mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
Features
Back To Top- Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
- Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
- Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Material | HSS Cobalt Powdered Metal |
| Overall Length Metric | 53 mm |
| Shank Style | Cylindrical shank with Square |
| Overall Length Inches | 2.0866 |
| Coating/Finish | Steam Tempered |
| Cutting Direction | Right |
| Number of Flutes | 3 |
