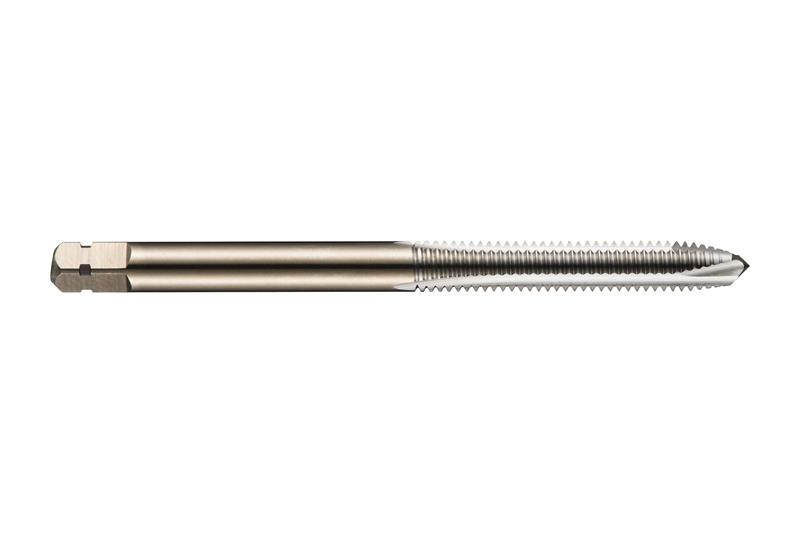

M10 x 1.50 mm Coarse Cobalt (HSS-E) Bronze Finish 3 Flute RH Plug Chamfer Spiral Flute Tap
- Item Code: 0580387
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to ANSI standard with 0.3810" shank and 0.2860" square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Overall Length Fractional | 2-15/16" |
|---|---|
| Number of Flutes | 2 |
| Brand | Dormer |
| Overall Length Inches | 2.9375" |
| Overall Length Metric | 74.61 mm |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
