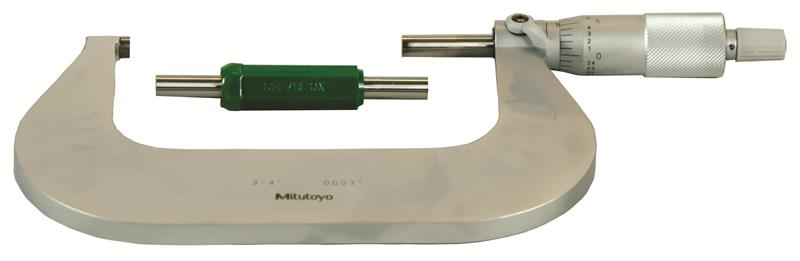

3-4 Inch, .0001 Inch Mechanical Outside Micrometer, Satin Chrome, Ratchet Stop, With Standard

  • Item Code: 101-120
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Satin-Chrome-finished frame
    • Tapered for hard to reach places.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Case Part Number 450005
Clutch Ratchet Stop
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 3 In
Contact Point Flatness .000024 In
Contact Point Diameter .25 In
Range 3 - 4 In
Thimble Diameter Measurement .71 In
Finish Satin Chrome
Parallelism .00008 In
Case Material Plastic Case
Individual or Set Individual
Resolution or Graduation .0001 In
Spindle Face Flat
Accuracy ±.00015 In
Primary Measuring Range Upper - Inch 4 In
