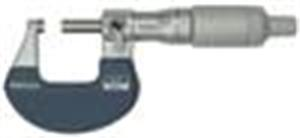

0-1 Inch, .0001 Inch Mechanical Outside Micrometer, Smooth Action, Ratchet Thimble

  • Item Code: 102-717
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ratchet function works both from the thimble and the speeder, allowing easy one-handed operation.
    • Clearly audible ratchet operation for reassurance that measurement is being performed at constant, preset force.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Range 0 - 1 In
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Clutch Ratchet Thimble
Accuracy ±.0001 In
Contact Point Diameter 6.35mm
Primary Measuring Range Lower - Inch 0 In
Contact Point Flatness .000024 In
Primary Measuring Range Upper - Inch 1 In
Case Material Plastic Case
Spindle Face Flat
Thimble Diameter Measurement 19mm
Finish Satin Chrome
Resolution or Graduation .0001 In
Individual or Set Individual
Case Part Number 475001
Parallelism .00008 In
